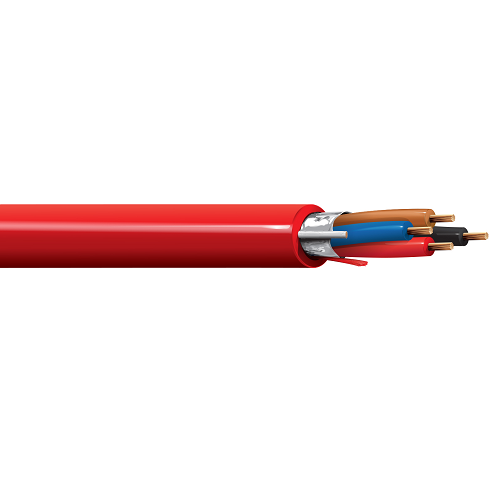

Belden 5522FL 22 AWG 4 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Riser-FPLR, 4-22 AWG solid bare copper conductors with PVC insulation, overall Beldfoil shield, PVC jacket with ripcord

Insulation:-

• Material: PO - Polyolefin
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.040 in (1.0 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (Solid) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.131 in
• Overall Cable Diameter (Nominal): 0.131 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Specifications:-

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5522FL
