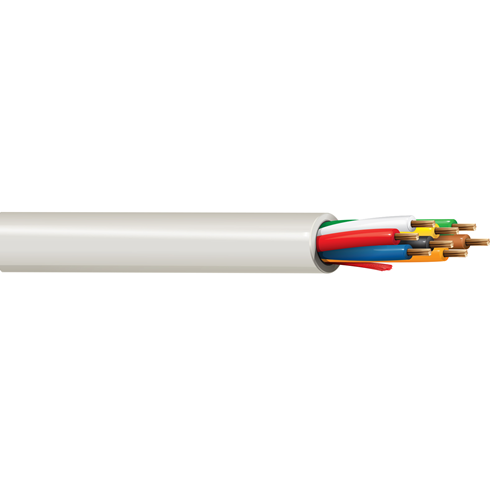

Belden 5506UE 22 AWG 8 Conductor 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Riser-CMR, 8-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord.

Insulation

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Diameter: 0.183 in (4.65 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 22
• No. of Conductor: 8
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 5506UE
