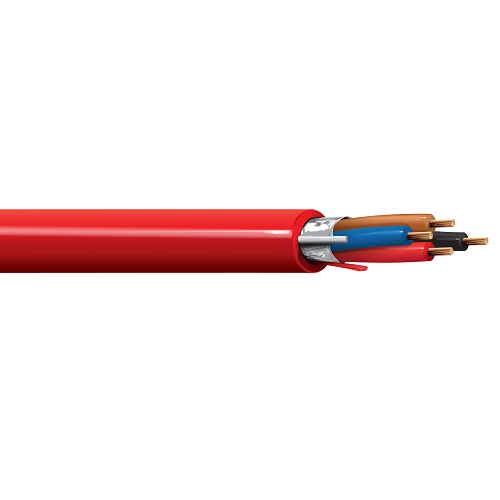

Belden 5502FL 22 AWG 4 Conductor 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Fire Alarm Cable, Riser-FPLR, 4-22 AWG stranded bare copper conductors with polyolefin insulation, overall Beldfoil shield, PVC jacket with ripcord

Insulation:-

• Material: PO - Polyolefin
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.146 in
• Overall Cable Diameter (Nominal): 0.146 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Specifications:-

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 5502FL
