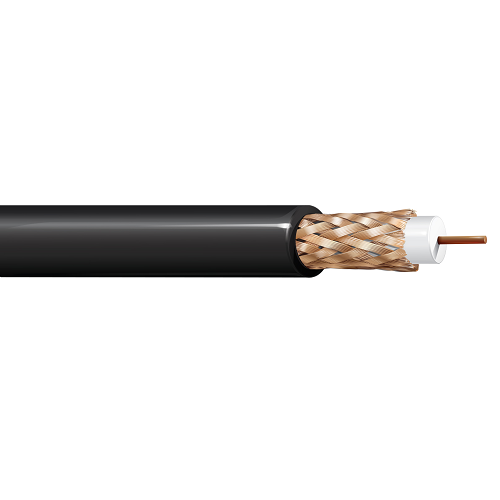

Belden 5439X5 20 AWG 1 Conductor Solid Bare Copper 300V Surveillance and CCTV Cable

Description:

Surveillance, CCTV Cable, RG59, Rated-CM, 20 AWG solid bare copper, foamed polyolefin core, 95% bare copper braid, CoreGuard water resistant tape, PVC jacket, UV resistant.

Insulation:

• Material: Gas-injected FPE - Foam Polyethylene
• Dia. (mm): 3.683

Outer Shield:

• Shield Type: Braid
• Material: BC - Bare Copper
• Coverage: 95

Outer Jacket:

• Material: PVC - Polyvinyl Chloride

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Low Voltage, CCTV, Sunlight Resistant, Moisture Resistant

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59/U
• Nom. Diameter: 0.8128
• Conductor Material: BC - Bare Copper
• Part Number: 5439X5
