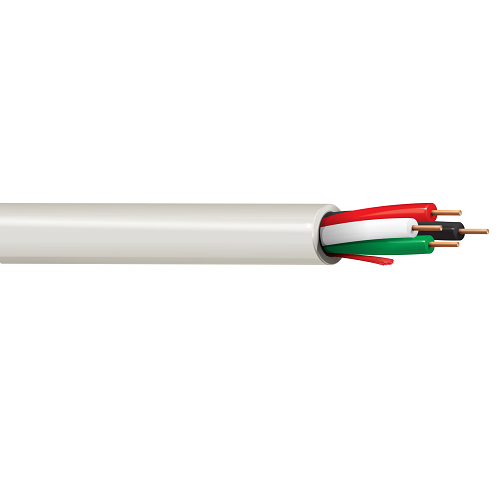

Belden 5302UP 18 AWG 4 Conductor 42x34 Stranding Bare Copper 300V Commercial Audio Cable

Description:-

Commercial Audio Cable, 4 Conductor 18 AWG highly flexible stranded (42x34) bare copper conductors with PVC insulation, CM, PVC jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.077 in (2.0 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.216 in
• Overall Cable Diameter (Nominal): 0.216 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 42x34
• Conductor Material: BC - Bare Copper
• Part Number: 5302UP
