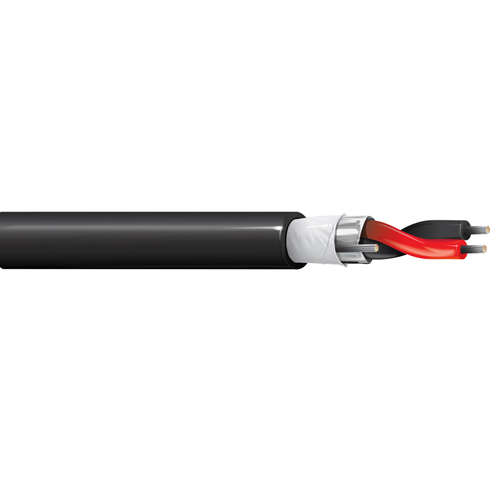

Belden 5240U1 16 AWG 2 Conductor 7x24 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CMG-FPL-PLTC, 1-16 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.0915 in (2.32 mm)
• Waterblocking: Waterblock Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.289 in (7.34 mm)
• Overall Cable Diameter (Nominal): 0.289 in (7.34 mm)

Standards:

• Operating Temperature: -30°C to +105°C
• Voltage Rating: 300 V (CMG, FPL, PLTC-ER)

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 7x24
• Conductor Material: TC - Tinned Copper
• Part Number: 5240U1
