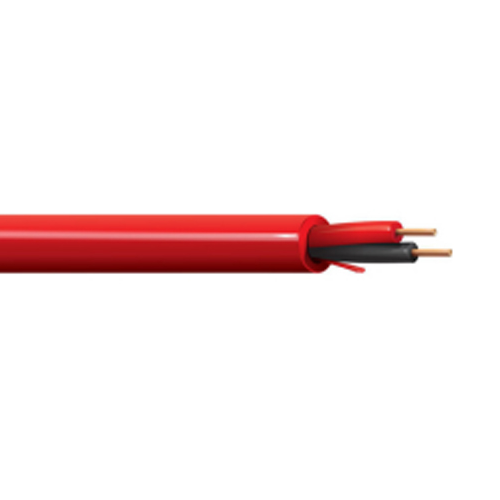

Belden 5220UV 16 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Rated-FPLR, 2-16 AWG solid bare copper conductors with Polypropylene insulation, PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.087 in (2.2 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.234 in (5.94 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -5°C To +75°C

Applications:-

• Addressable Fire Alarm Circuits, SLC Loops, Initiating Devices, Digital Audio Loops

Specifications:-

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5220UV
