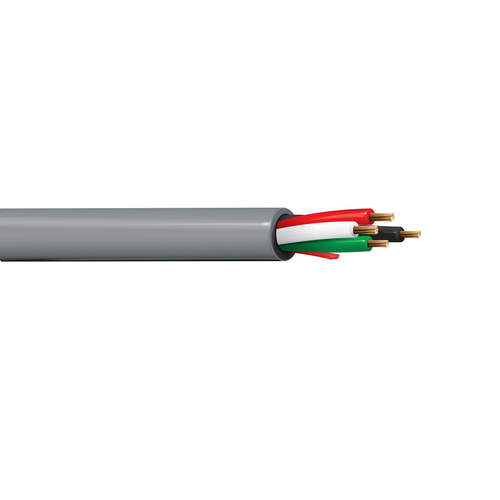

Belden 5202UP 16 AWG 4 Conductor 65x34 Stranding Bare Copper 300V Audio Cable

Description:

Audio Cable, Rated-CM, 4-16 AWG, highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.094 in (2.4 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.256 in
• Overall Cable Diameter (Nominal): 0.256 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 16
• No. of Conductor: 4
• Stranding: 65x34
• Conductor Material: BC - Bare Copper
• Part Number: 5202UP
