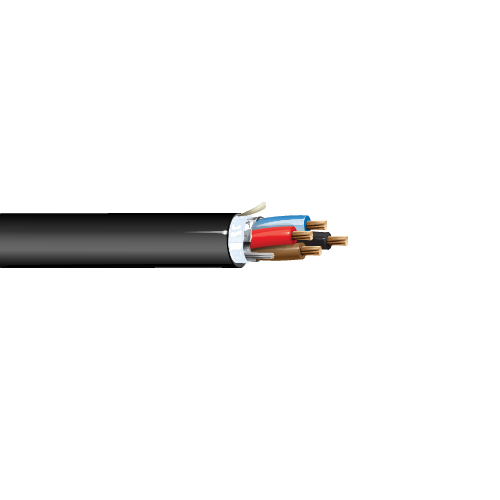

Belden 5202U2 16 AWG 4 Conductor 19x29 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CL3, 4-16 AWG PVC-Nylon insulation, Waterblocking tape, PVC jacket with ripcord.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.020 in (0.51 mm)

Outer Shield:-

• 100% Waterblocking Tape
• Waterblocking: Waterblock Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.355 in (9.02 mm)
• Overall Cable Diameter (Nominal): 0.355 in (9.02 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +90°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial

Specifications:-

• Size (AWG): 16
• No. of Conductor: 4
• Stranding: 19x29
• Conductor Material: BC - Bare Copper
• Part Number: 5202U2
