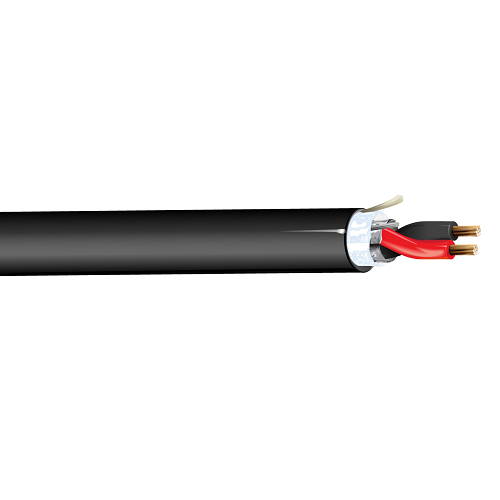

Belden 5200F2 16 AWG 2 Conductor 7x24 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CL3, 2-16 AWG PVC-Nylon insulation,100% Shielded, Waterblocking tape, PVC jacket with ripcord

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.020 in (0.51 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Aluminum - Poly
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper
• 100% Waterblocking Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.328 in (8.33 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +90°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial

Specifications:-

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 7x24
• Conductor Material: BC - Bare Copper
• Part Number: 5200F2
