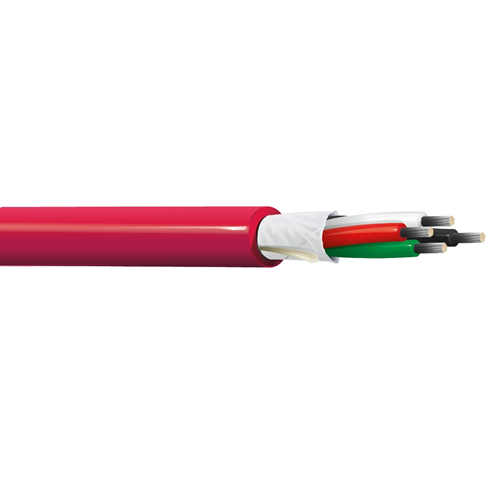

Belden 5102U1 14 AWG 4 Conductor 19x27 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CL3-FPL-PLTC, 4-14 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.12 in (3.0 mm)
• Waterblocking: Waterblock Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.427 in (10.8 mm)
• Waterblocking: Waterblock Tape

Standards:

• Voltage Rating: 300 V RMS (PLTC)
• Operating Temperature: -20°C To +90°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Fire Alarm (Red Jkt), Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 14
• No. of Conductor: 4
• Stranding: 19x27
• Conductor Material: TC - Tinned Copper
• Part Number: 5102U1
