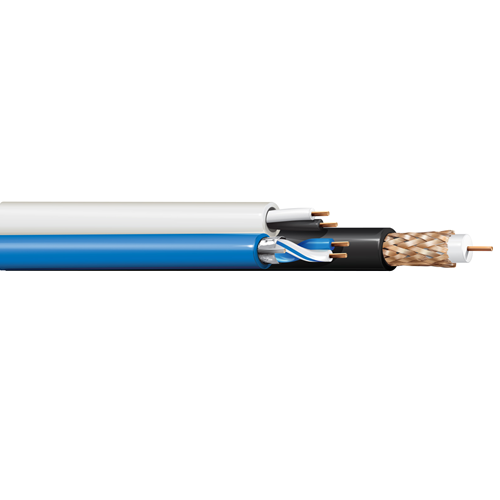

Belden 501PTZ 20 AWG 1 Conductor 22 AWG 1 Pair 18 AWG 2 Conductor PTZ Cable

Description:

PTZ (CCTV + Control + Power) Cable, Rated-CM, 1-RG59 20 AWG solid bare copper with foam polyolefin, 95% bare copper braid, 1-22 AWG stranded bare copper pair with polyolefin insulation and Beldfoil shield, 2-18 AWG stranded bare copper conductors with PVC insulation, Siamese with PVC jacket.

Insulation:

Element: Coax(es)
• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.145 in

Element: Pair1
• Material: PP - Polypropylene
• Nominal Diameter: 0.062 in

Element: Pair2
• Material: PP - Polypropylene

• Insulation Table Notes: Gas Injected

Inner Shield:

• Element: Coax(es)
• Type: Braid
• Material: Bare Copper (BC)
• Coverage [%]: 95%
• Drainwire AWG: 22 7x30

Element: Pair1
• Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride

Outer Jacket:

• Material: Banana Peel (No Overall Jacket)
• Nom. Diameter: 0.227 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -10°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

Element: Coax(es)
• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• Material: BC - Bare Copper

Element: Pair1
• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Nom. Diameter: 0.03 in
• Material: BC - Bare Copper

Element: Pair2
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Nom. Diameter: 0.047 in
• Material: BC - Bare Copper
• Part Number: 501PTZ
