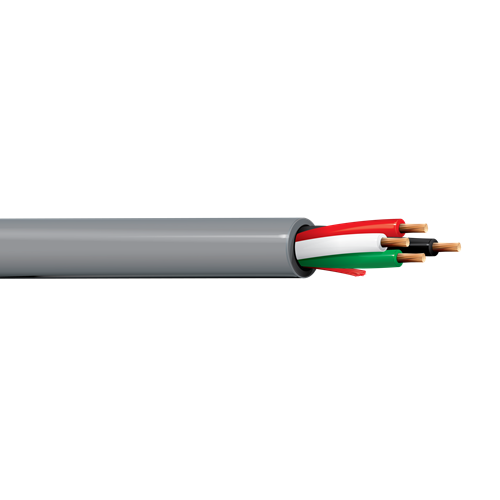

Belden 5002UP 12 AWG 4 Conductor 65x30 Stranding Bare Copper 300V Audio Cable

Description:

Audio Cable, 4 Conductor 12 AWG, highly flexible stranded (65x30) bare copper conductors with PVC insulation, CL3, PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.138 in (3.51 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Diameter: 0.377 in (9.58 mm)
• Overall Cable Diameter (Nominal): 0.377 in (9.58 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• High Flex Audio/Speaker

Specifications:

• Size (AWG): 12
• No. of Conductor: 4
• Stranding: 65x30
• Conductor Material: BC - Bare Copper
• Part Number: 5002UP
