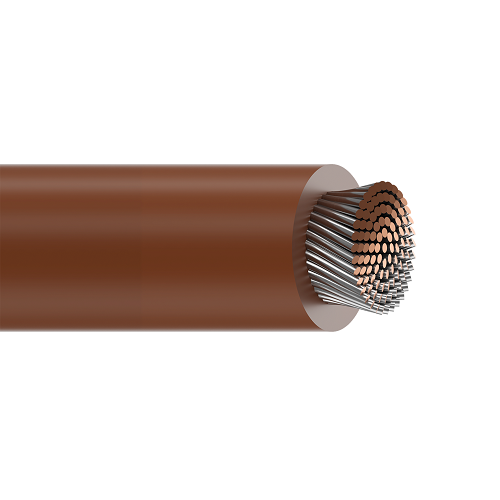

Belden 39110 10 AWG 1 Conductor 105x30 Stranding Tinned Copper 600V Low Temp Plastic Lead Wire

Description:-

Low Temp Plastic Lead Wire, 10 AWG (105x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1.

Insulation:-

• Material: PPO - Polyphenylene Oxide
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Insulation Diameter: 0.134 in (3.40 mm)
• Overall Cable Diameter (Nominal): 0.134 in (3.40 mm)

Standards:-

• UL Voltage Rating: 600 V RMS
• Operating Temperature Range: -40°C To +105°C Dry

Applications:-

• Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers

Specifications:-

• Size (AWG): 10
• No. of Conductors: 1
• Stranding: 105x30
• Conductor Material: TC - Tinned Copper
• Part Number: 39110
