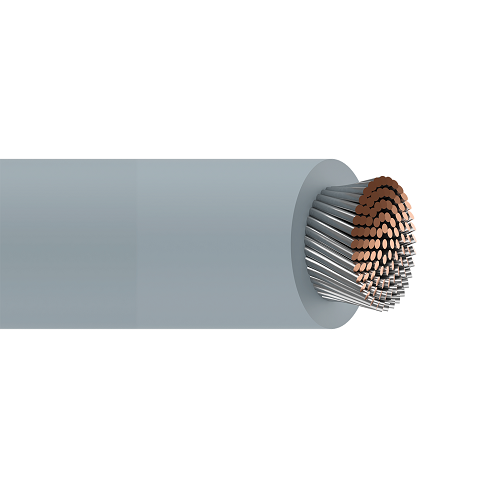

Belden 34408 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 300V Low Temp Rubber Lead Wire
Belden 34408 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 300V Low Temp Rubber Lead Wire
SKU: SKU: NES34408 Download PDF
gauge:
- Belden 34408 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 300V Low Temp Rubber Lead Wire
- Belden 34408 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 300V Low Temp Rubber Lead Wire
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $5.49 /FT
Regular price
BEFORE
Sale price
Now $5.49 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 34408 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 300V Low Temp Rubber Lead Wire
Description:-
Low Temp Rubber Lead Wire, 8 AWG (84x27) Tinned Copper, CSPE Insulation, AWM 3192 CSA TYPE CL1052 600V 105C.
Insulation:-
• Material: CSPE - Chlorosulphonated Polyethylene
• Nom. Thickness: 0.067 in (1.7 mm)
• Nom. Insulation Diameter: 0.29 in (7.4 mm)
• Overall Cable Diameter (Nominal): 0.290 in (7.37 mm)
Standards:-
• Voltage Rating: 300 V (CSA CL-1052)
• UL Voltage Rating: 600 V (AWM 3192)
• Operating Temperature Range: -30°C To +105°C
Applications:-
• Class 130(B) motor lead systems, internal wiring of appliances, oil-resistant applications
Specifications:-
• Size (AWG): 8
• No. of Conductors: 1
• Stranding: 84x27
• Conductor Material: TC - Tinned Copper
• Part Number: 34408
Description:-
Low Temp Rubber Lead Wire, 8 AWG (84x27) Tinned Copper, CSPE Insulation, AWM 3192 CSA TYPE CL1052 600V 105C.
Insulation:-
• Material: CSPE - Chlorosulphonated Polyethylene
• Nom. Thickness: 0.067 in (1.7 mm)
• Nom. Insulation Diameter: 0.29 in (7.4 mm)
• Overall Cable Diameter (Nominal): 0.290 in (7.37 mm)
Standards:-
• Voltage Rating: 300 V (CSA CL-1052)
• UL Voltage Rating: 600 V (AWM 3192)
• Operating Temperature Range: -30°C To +105°C
Applications:-
• Class 130(B) motor lead systems, internal wiring of appliances, oil-resistant applications
Specifications:-
• Size (AWG): 8
• No. of Conductors: 1
• Stranding: 84x27
• Conductor Material: TC - Tinned Copper
• Part Number: 34408
