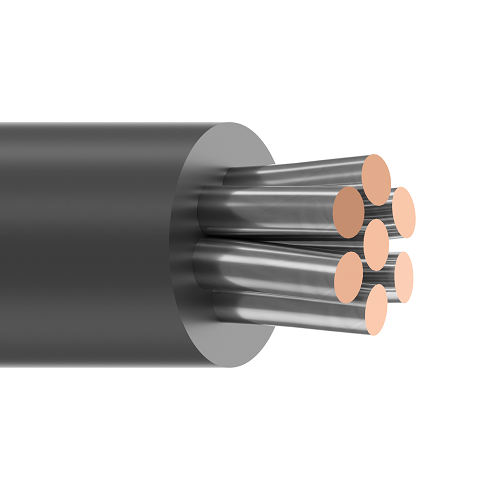

Belden 32822 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 300V Low Temp Plastic Lead Wire
Belden 32822 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 300V Low Temp Plastic Lead Wire
SKU: SKU: NES32822 Download PDF
gauge:
- Belden 32822 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 300V Low Temp Plastic Lead Wire
- Belden 32822 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 300V Low Temp Plastic Lead Wire
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $0.35 /FT
Regular price
BEFORE
Sale price
Now $0.35 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 32822 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 300V Low Temp Plastic Lead Wire
Description:-
Low Temp Plastic Lead Wire, 22 AWG (7x30) Tinned Copper Unistrand, PVC Insulation, AWM 1007 CSA TYPE TR-64 300V 90C VW-1.
Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)
• Overall Cable Diameter (Nominal): 0.062 in (1.6 mm)
Standards:-
• Voltage Rating: 300 V
• UL Voltage Rating: 300 V
Applications:-
• Inter-connection circuits, internal wiring of computers and electronic equipment, internal wiring of appliances
Specifications:-
• Size (AWG): 22
• No. of Conductors: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper (Uni-Strand)
• Part Number: 32822
Description:-
Low Temp Plastic Lead Wire, 22 AWG (7x30) Tinned Copper Unistrand, PVC Insulation, AWM 1007 CSA TYPE TR-64 300V 90C VW-1.
Insulation:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)
• Overall Cable Diameter (Nominal): 0.062 in (1.6 mm)
Standards:-
• Voltage Rating: 300 V
• UL Voltage Rating: 300 V
Applications:-
• Inter-connection circuits, internal wiring of computers and electronic equipment, internal wiring of appliances
Specifications:-
• Size (AWG): 22
• No. of Conductors: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper (Uni-Strand)
• Part Number: 32822
