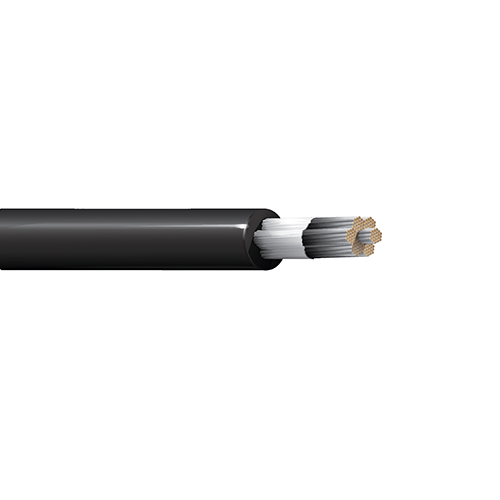

Belden 31012 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Belden 31012 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
SKU: SKU: NES31012 Download PDF
gauge:
- Belden 31012 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
- Belden 31012 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $2.35 /FT
Regular price
BEFORE
Sale price
Now $2.35 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 31012 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
Description:-
Low Temp Rubber Lead Wire, 12 AWG (65x30) Tinned Copper, XLPO Insulation, UL TYPE SIS VW-1 600V 90C.
Insulation:-
• Material: XLP, XLPO, XLPE (Thermoset)
• Nominal Wall Thickness: 0.032 in
Outer Jacket:-
• Nom. Diameter: 0.167 in
Standards:-
• UL Voltage Rating: 600 V
Applications:-
• Applications for wiring switchboards, panelboards, distribution boards
Specifications:-
• Size (AWG): 12
• No. of Conductors: 1
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 31012
Description:-
Low Temp Rubber Lead Wire, 12 AWG (65x30) Tinned Copper, XLPO Insulation, UL TYPE SIS VW-1 600V 90C.
Insulation:-
• Material: XLP, XLPO, XLPE (Thermoset)
• Nominal Wall Thickness: 0.032 in
Outer Jacket:-
• Nom. Diameter: 0.167 in
Standards:-
• UL Voltage Rating: 600 V
Applications:-
• Applications for wiring switchboards, panelboards, distribution boards
Specifications:-
• Size (AWG): 12
• No. of Conductors: 1
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 31012
