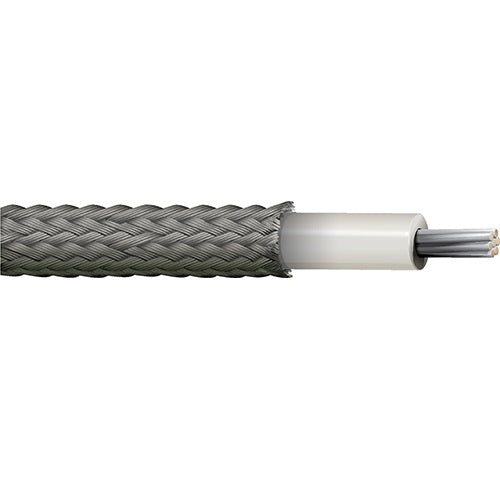

Belden 30820 20 AWG 1 Conductor 10x30 Stranding Tinned Copper 600V Rubber Lead Wire
Belden 30820 20 AWG 1 Conductor 10x30 Stranding Tinned Copper 600V Rubber Lead Wire
SKU: SKU: NES30820 Download PDF
gauge:
- Belden 30820 20 AWG 1 Conductor 10x30 Stranding Tinned Copper 600V Rubber Lead Wire
- Belden 30820 20 AWG 1 Conductor 10x30 Stranding Tinned Copper 600V Rubber Lead Wire
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $1.59 /FT
Regular price
BEFORE
Sale price
Now $1.59 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 30820 20 AWG 1 Conductor 10x30 Stranding Tinned Copper 600V Rubber Lead Wire
Description:-
Rubber Lead Wire, 20 AWG (10x30) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3069 CSA SEWF-2 600V 150C.
Insulation:-
• Material: Silicone Rubber
• Nominal Wall Thickness: 0.032 in
Outer Jacket:-
• Material: Lacquered Glass Braid Covering
• Nom. Diameter: 0.122 in
Standards:-
• UL Voltage Rating: 600 V RMS
• Operating Temperature Range: -70°C To +150°C
Applications:-
• Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications
Specifications:-
• Size (AWG): 20
• No. of Conductors: 1
• Stranding: 10x30
• Conductor Material: TC - Tinned Copper
• Part Number: 30820
Description:-
Rubber Lead Wire, 20 AWG (10x30) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3069 CSA SEWF-2 600V 150C.
Insulation:-
• Material: Silicone Rubber
• Nominal Wall Thickness: 0.032 in
Outer Jacket:-
• Material: Lacquered Glass Braid Covering
• Nom. Diameter: 0.122 in
Standards:-
• UL Voltage Rating: 600 V RMS
• Operating Temperature Range: -70°C To +150°C
Applications:-
• Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications
Specifications:-
• Size (AWG): 20
• No. of Conductors: 1
• Stranding: 10x30
• Conductor Material: TC - Tinned Copper
• Part Number: 30820
