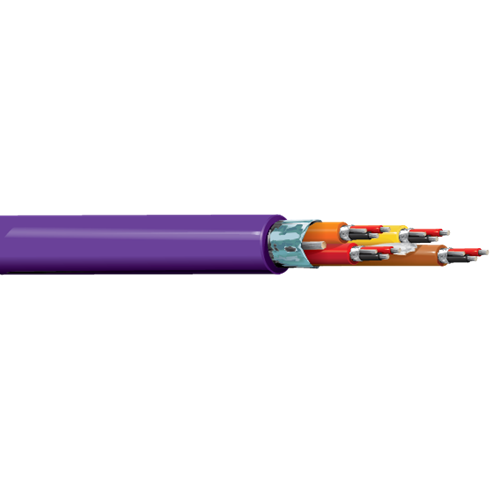

Belden 1806F 24 AWG 12 Pair 7x32 Stranding Tinned Copper 300V Audio Snake Cable

Description:

Digital Audio Snake Cable, CMG-Rated, 12-24 AWG tinned copper pairs, Datalene insulation, individually shielded with Beldfoil, numbered/color-coded PVC jackets, flexible PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.167 in (4.24 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.069 in (1.8 mm)
• Nom. Diameter: 0.829 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +60°C
• Nom. Characteristic Impedance: 110 Ohm

Applications:

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio.
