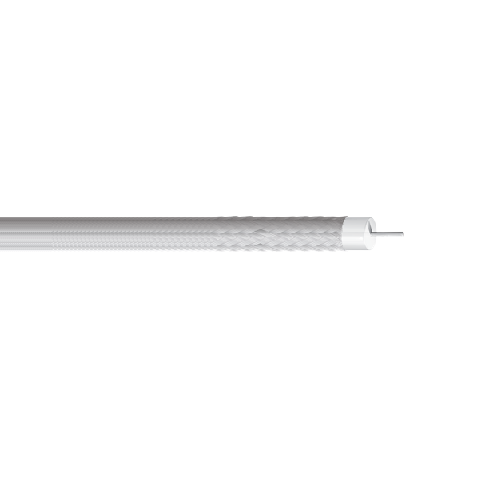

Belden 1674A 29 AWG 1 Conductor Solid Silvered Copper Covered Steel 50 Ohm Conformable Coax Cable

Description:-

M17/151 type, 29 AWG solid 0.011" silver-plated copper-covered steel conductor, TFE Teflon insulation, copper-tin composite shield (100% coverage), unjacketed.

Insulation:-

• Material: PTFE - Polytetrafluoroethylene
• Material Trade Name: Teflon
• Nominal Diameter: 0.034 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bare Copper (BC)
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC + Tin Filled)
• Coverage: 100%

Standards:-

• Nominal Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -70°C To +200°C

Specifications:-

• Size (AWG): 29
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.011 in
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 1674A
