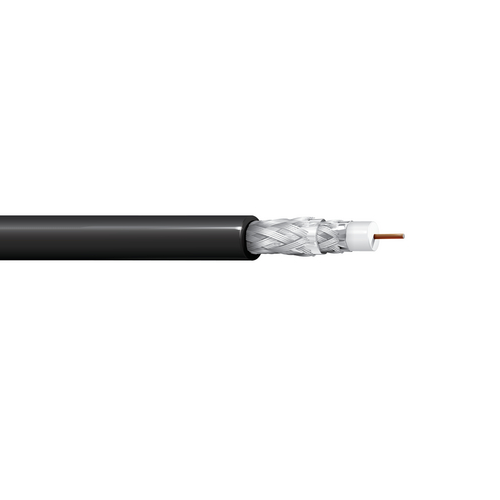

Belden 1617AP 14 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Broadband Coax Cable

Description:-

Broadband Coax, Series 11, 14 AWG Solid Bare Copper Covered Steel Conductor, FEP Insulation, Foil + 60% Aluminum Braid + Foil + 40% Aluminum Braid Shield, PVDF Jacket, CMP

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.274 in (6.96 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duobond II
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

• Layer: 3
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 4
• Shield Type: Braid
• Material: Aluminum
• Coverage: 40%

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.372 in (9.45 mm)
• Overall Cable Diameter (Nominal): 0.372 in (9.45 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C to +150°C

Applications:-

• Broadband, Cable Television (CATV), RF drop cable, Direct Broadcast Satellite (DBS), Over-The-Air (OTA) antennas

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• Series Type: 11
• Nominal Diameter: 0.064 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 1617AP
