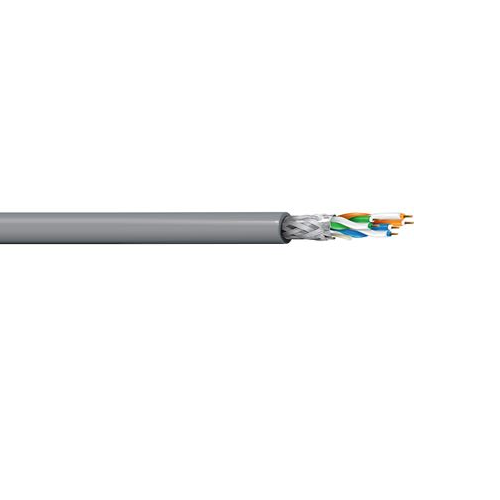

Belden 1538A 28 AWG 3 Pair 7x36 Stranding Bare Copper 300V RISC 6000 IBM N Cable

Description:-

RISC 6000 IBM N Cable, 28 AWG stranded (7x36) bare copper conductors, patented step polyolefin insulation, twisted pairs, overall Beldfoil shielded + tinned copper braid shield (65% coverage), tinned copper drain wire, PVC jacket (see RISC color code chart below).

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.035 in (0.89 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 28 AWG (7x36) TC - Tinned Copper

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.02 in (0.51 mm)
• Nom. Diameter: 0.230 in
• Overall Cable Diameter (Nominal): 0.230 in

Standards:-

• UL Voltage Rating: 300 V
• Nominal Characteristic Impedance: 120 Ohm
• Operating Temperature Range: -20°C to +60°C

Applications:-

• For RISC Systems where energy efficiency is Key

Specifications:-

• Size (AWG): 28
• No. of Pair: 3
• Stranding: 7x36
• Conductor Material: BC - Bare Copper
• Part Number: 1538A
