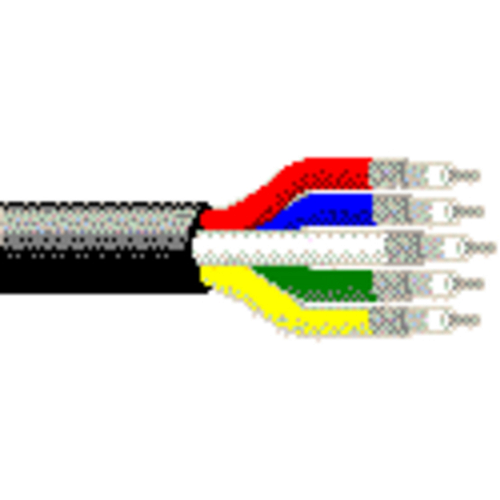

Belden 1417B 26 AWG 5 Conductor 7x34 Stranding Bare Copper 75 Ohm RGB Video Coax Cable

Description:-

RGB Video Coax, 5-26 AWG stranded bare copper conductors, foam HDPE insulation, Duofoil +95% tinned copper braid shield, inner PVC jackets, flexible PVC jacket

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.089 in

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.146 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.477 in
• Separator Material: Polyester Tape

Standards:-

• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +60°C

Specifications:-

• Size (AWG): 26
• No. of Conductor: 5
• Stranding: 7x34
• Nominal Diameter: 0.019 in
• Conductor Material: BC - Bare Copper
• Part Number: 1417B
