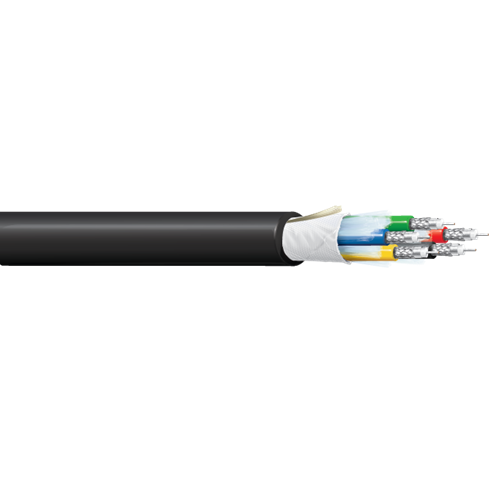

Belden 1395P 25 AWG 5 Conductor Solid Tinned Copper 300V RGB Video Coax Cable

Description:

RGB Video Cable, 5 coax, 25 AWG solid tinned copper, foam FEP insulation, Duofoil shield+95% tinned copper serve, inner Flamarrest jackets, CMP overall Flamarrest jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.074 in

Inner Shield:

• Layer: 1
• Outer Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Outer Shield Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Shield:

• Material: Tri-Laminate (Alum+Poly+Alum)

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.105 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.320 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: 0°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Video Coax Cable

Specifications:

• Size (AWG): 25
• No. of Conductor: 5
• Stranding: Solid
• RG Type: Sub-miniature 59
• Nom. Diameter: 0.018 in
• Conductor Material: TC - Tinned Copper
• Part Number: 1395P
