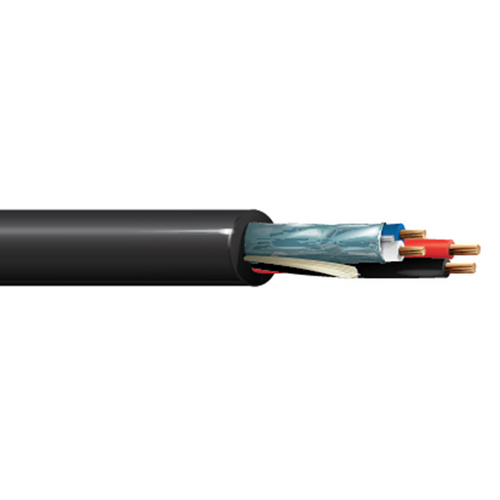

Belden 1387LP 22 AWG 1 Pair 18 AWG 2 Conductor Bare Copper 300V Lighting and Automation Cable

Description:-

Lighting and Automation Cable, 1 (data) pair 22 AWG stranded (7x30) bare copper, FEP insulation, Beldfoil shield with drain, and 2 conductor 18 AWG stranded (19x30) bare copper unshielded, FEP insulation (power), CMP rated PVDF jacket

Insulation:-

Element: Pair(s)
• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Element: Conductor(s)
• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.058 in (1.5 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.228 in (5.79 mm)
• Overall Cable Diameter (Nominal): 0.228 in (5.79 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -40°C to +150°C

Applications:-

• Multi-Media and Lighting Automation / Control, Lutron® Sivoia® QS System, Motor Drive Unit

Specifications:-

Element: Pair(s)
• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: Conductor(s)
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 19x30
• Conductor Material: BC - Bare Copper
• Part Number: 1387LP
