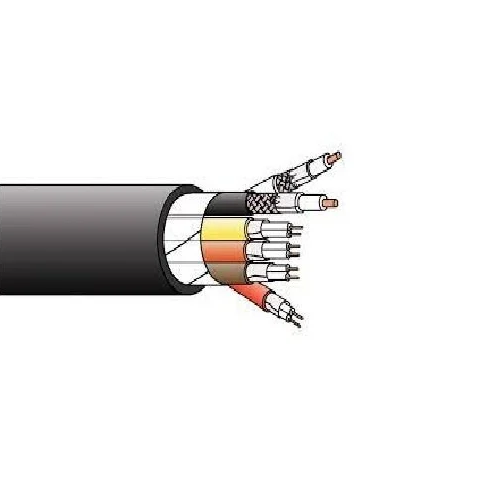

Belden 1347A 20 AWG 2 Coax Bare Copper 22 AWG 4 Pair Tinned Copper 300V Composite Data Cable

Description:-

Composites, 2 Coax 20 AWG BC, GIFPE insulation, TC braid 95% coverage, overall foil tape, and 4 PR 22 AWG TC, PP insulation, bonded foil tape plus drain wire, overall CMR rating, and PVC jacket.

Insulation:-

Element: Coax(es)
• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.145 in (3.68 mm)

Element: Pair(s)
• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:-

Element: Each Pair
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Element: Coax(es)
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 93%

Element: Tape
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+PVC)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC

Inner Jacket:-

Elemen: Coax(es)
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.233 in (5.92 mm)

Outer Shield:-

• Outer Shield Type: Tape
• Material: No Shield
• Coverage: 100%

• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Outer Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.640 in
• Overall Cable Diameter (Nominal): 0.640 in

Standards:-

• RG Type: 59
• Voltage Rating: 300 V
• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance Coax(es): 75 Ohm
• Nom. Characteristic Impedance Pair(s): 45 Ohm

Applications:-

• Electronic News Gathering (ENG), Electronic Field Production (EFP), Analog Audio + Digital Video Composite Applications, 2V + 4A

Specifications:-

Element: Coax(es)
• Size (AWG): 20
• No. of Conductor: 2
• Stranding: Solid
• Nom. Diameter: 0.034 in
• Conductor Material: BC - Bare Copper

Element: Pair(s)
• Size (AWG): 22
• No. of Pair: 4
• Stranding: 7x30
• Nom. Diameter: 0.0285 in
• Conductor Material: TC - Tinned Copper
• Part Number: 1347A
