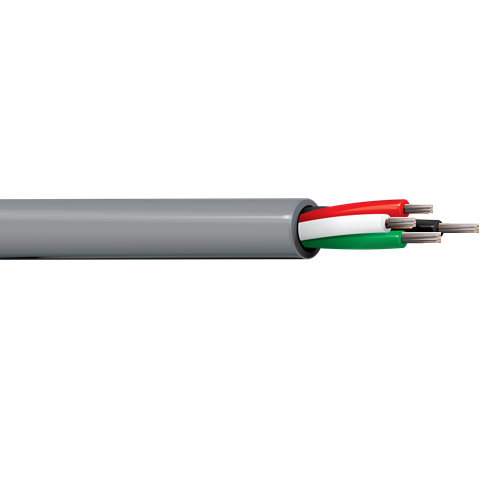

Belden 1315SB 14 AWG 4 Conductor 41x30 Stranding Tinned Copper 300V Shipboard Speaker Cable

Description:

Shipboard Speaker, 4 Conductor 14 AWG stranded (41x30) tinned copper conductors, PP insulation, CMG-LS rating, LSZH jacket.

Insulation:

• Material: PP - Polypropylene
• Nominal Diameter: 0.095 in
• Nominal Wall Thickness: 0.011 in

Outer Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.333 in
• Nominal Wall Thickness: 0.052 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +105°C

Applications:

• Speaker, Audio, Control, Intercom, ABS Type Approved, Shipboard, CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1685 FT4 Loading, Limited Smoke, IEC 60332-3-22 (Category A), 60332-1, IEEE 1203

Specifications:

• Size (AWG): 14
• No. of Conductor: 4
• Stranding: 41x30
• Nominal Diameter: 0.073 in
• Conductor Material: TC - Tinned Copper
• Part Number: 1315SB
