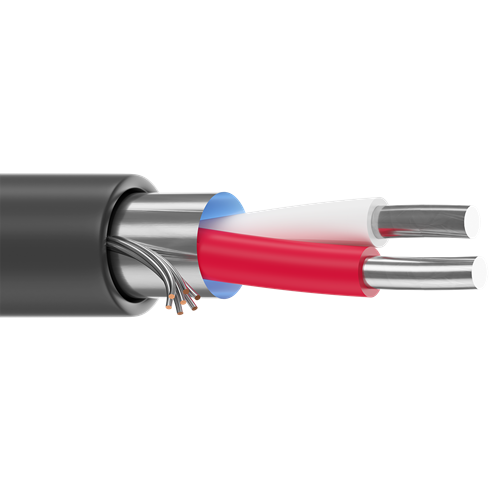

Belden 1115A 16 AWG 1 Pair Solid Iron and Constantan 300V Type JX Thermocouple Cable

Description:

Type JX Thermocouple, 1 Pair 16 AWG (Solid) Iron+Constantan, FEP Insulation Wht, Red Color Code, Overall Beldfoil Shield, Black FEP Outer Jacket, PLTC CL2P 200C SUN RES.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.010 in (0.25 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Diameter: 0.170 in (4.32 mm)
• Overall Cable Diameter (Nominal): 0.170 in (4.32 mm)

Standards:

• Operating Temperature: -70°C To +200°C
• Voltage Rating: 300 V (PLTC), 300 V (CL3P)

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), Thermocouple, distributed control system (DCS), programmable logic controller (PLC)
