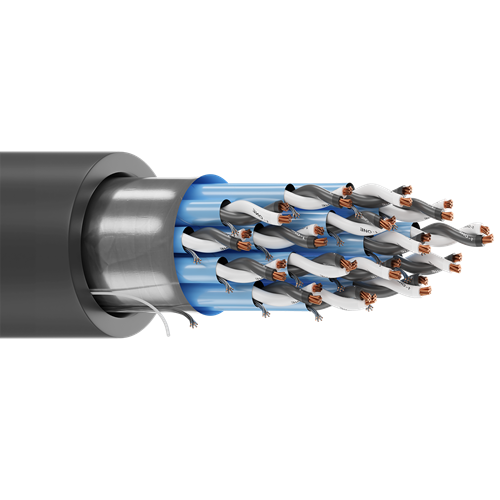

Belden 1067A 18 AWG 16 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
Belden 1067A 18 AWG 16 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
SKU: SKU: NES1067A Download PDF
- Belden 1067A 18 AWG 16 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
- Belden 1067A 18 AWG 16 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 1067A 18 AWG 16 Pair BC 600V Overall Shield PVC/Nylon Insulation Tray Cable
Description:
UL Instrumentation, 16 Pair 18 AWG (7x26) Bare Copper, PVC-NYL Insulation E1 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry 75C Wet SUN RES DIR BUR.
Insulation:
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.078 in (2.0 mm)
Outer Shield:
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.064 in (1.6 mm)
• Nom. Diameter: 0.793 in (20.1 mm)
Standards:
• UL Temperature: 90°C Dry, 90°C Wet
• Voltage Rating: 600 V (TC-ER), 150 V (NPLF)
• Operating Temperature: Wet/Dry: -30°C to 90°C
Applications:
• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS), programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
• Size (AWG): 18
• No. of Pair: 16
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 1067A
