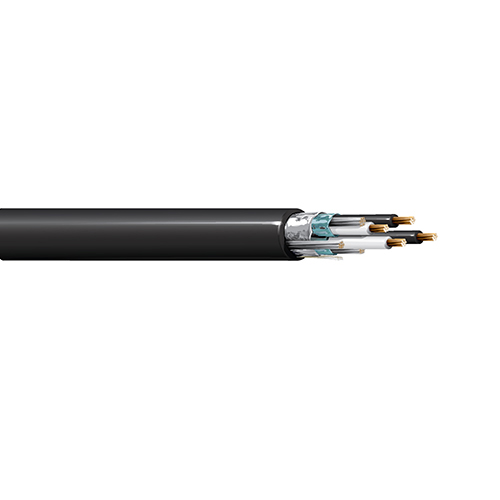

Belden 1037A 16 AWG 3 Pair 7x24 Stranding Bare Copper 600V Instrumentation Tray Cable

Description:

UL Instrumentation, 3 Pair 16 AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Individual and Overall Beldfoil Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 16 AWG (7x24) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.048 in (1.2 mm)
• Nom. Diameter: 0.476 in (12.1 mm)
• Overall Cable Diameter (Nominal): 0.476 in (12.1 mm)

Standards:

• UL Temperature: 90°C Dry, 90°C Wet
• Voltage Rating: 600 V (TC-ER), 150 V (NPLF)
• Operating Temperature: -30°C to 90°C Dry/Wet

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS), programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
