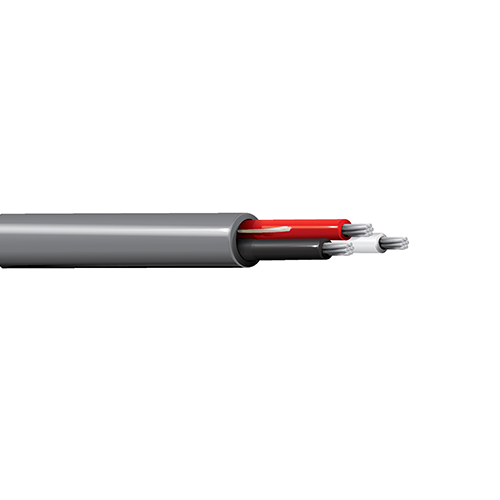

Belden 1034A 16 AWG 3 Conductor 7x24 Stranding Bare Copper 300V Instrumentation PLTC Cable
Description:
UL Instrumentation, 1 Triad 16 AWG (7x24) Bare Copper, PVC Insulation E1 Color Code, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES.
Insulation:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.091 in (2.3 mm)
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.270 in
• Overall Cable Diameter (Nominal): 0.270 in
Standards:
• Voltage Rating: 300 V
• Operating Temperature: -20°C to +105°C
Applications:
• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), Thermocouple, distributed control system (DCS), programmable logic controller (PLC)
• Size (AWG): 16
• No. of Conductor: 3
• Stranding: 7x24
• Conductor Material: BC - Bare Copper
• Part Number: 1034A
