9004290000 - White Wire End Ferrules, 0.75 mm², 14mm Length, 500 Pack (Pack of 500)
9004290000 - White Wire End Ferrules, 0.75 mm², 14mm Length, 500 Pack (Pack of 500)
SKU: SKU: 9004290000 Download PDF
- 9004290000 - White Wire End Ferrules, 0.75 mm², 14mm Length, 500 Pack (Pack of 500)
- 9004290000 - White Wire End Ferrules, 0.75 mm², 14mm Length, 500 Pack (Pack of 500)
Couldn't load pickup availability
Description:

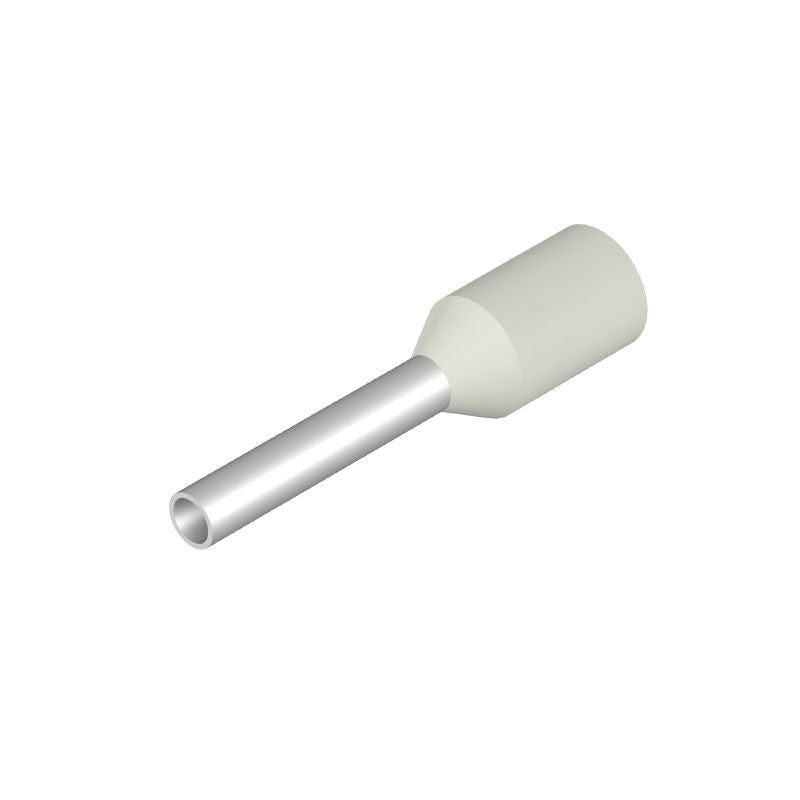

This white wire end ferrule strip is crafted to comply with standard specifications Each ferrule has a collar diameter of 28 mm and accommodates a conductor cross-section of 075 mm² The contact surface measures 12 mm in diameter and has a length of 8 mm, while the total length of each ferrule is 14 mm Constructed from a metal sleeve with a thickness of 015 mm and a plastic collar that is 025 mm thick, these ferrules are securely packaged in reels, with each pack containing 500 pieces.
Features and Benefits:
•RoHS compliant without exemption.
•No SVHC above 0.1 wt%.
•Packaged in reels.
Specifications:
| Collar diameter (D2) | 2.8 mm |
| Conductor cross-section | 0.75 mm² |
| Contact surface diameter (D1) | 1.2 mm |
| Contact surface length (L2) | 8 mm |
| Overall length (L1) | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 18 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
