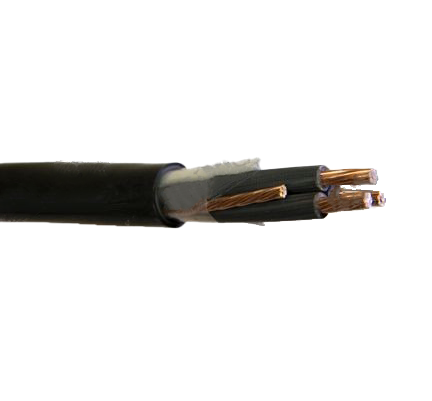

8/3 Unshielded VNTC Tray Cable W/ Ground TC-ER THHN Insulation PVC Jacket 600V

Applications:

Primarily used for power, control, signal, communication, and lighting circuits in commercial and industrial environments. Suitable for installations in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts, direct burial applications not exceeding 600 volts.

Also Known As:

8/3 Cable Tray, 8/3 Cable Tray Types, 8/3 Electrical Cable Tray, 8/3 wire cable tray, 8/3 cable tray wire, 8/3 THHN cable, 8/3 PVC tray cable, 8/3 raceway cable, 8/3 thermoplastic tray cable, 8/3 wire tray, 8/3 multi-conductor THHN cable, 8/3 cable tray types, 8/3 PVC cable tray, 8/3 control cable, 8/3 electrical cable tray, 8/3 cable tray systems, 8/3 cable tray price, 8/3 control cable, 8/3 electrical tray, 8/3 raceway cable tray, 8/3 flexible cable tray, 8/3 industrial cable tray, 8/3 underground cable,8/3 tray control cable with the ground, 8/3 direct burial cable, 8/3 exposed run tray cable, 8/3 ER cable, 8/3 ER tray cable, 8/3 TC-ER cable.

Constructions:

Conductors:
Soft or annealed bare copper per ASTM B3 and B8 compressed in Class B stranding

Insulation:
Heat and moisture resistant Polyvinylchloride (PVC) with a Nylon jacket, per UL 83

Ground:
Soft or annealed bare copper per ASTM B3 and B8 in Class B stranding

Color Code:
Black insulation with ICEA Method 4 printed numbers

Assembly:
Conductors are cabled together with or without fillers as required to form a round, compact cable core with a binder tape.

Jacket:
Flame and sunlight resistant black PVC rated 90°C wet or dry per UL 1277. Ripcord provided for jackets with thickness of 60 mils or less.

Standards:

• UL 83, UL1277
• UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test
• Approved for Class 1 or 2, Division 2 industrial hazardous locations per NEC
• ICEA S-95-658
• UL Listed as Type TC or TC-ER, Sunlight Resistant, Direct Burial
• UL Listed to IEEE1202 and CSA FT4 70,000 BTU Flame Test
• ASTM B3, ASTM B8
• NEC Article 336, Article 501, Article 725 for class 1 circuits

Specification:

• • Size: 8 AWG
• • No of Conductors: 3 + 1 Ground
• • No of Strands: 7
• • Ground Wire Size: 10 AWG
• • Insulation Thickness: 0.030 inches
• • Nylon Thickness: 0.005 inches
• • Jacket Thickness: 0.060 inches
• • Overall Diameter: 0.61 inches
• • Net Weight ( lbs/kft ): 303 lbs
• • Ampacity* at 90°C: 55 amps
