7775870 - DREMOMETER 1/4" Torque Wrench 6-30 Nm, Lightweight & Precise
7775870 - DREMOMETER 1/4" Torque Wrench 6-30 Nm, Lightweight & Precise
SKU: SKU: 7775870
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the DREMOMETER AML 1/4" torque wrench, a precision tool engineered for controlled screw fastening within a torque range of 6 to 30 Nm (50 to 270 lbf·in) This high-performance wrench adheres to the DIN EN ISO 6789-2:2017 Type II Class A standard and comes with a traceable test certificate With an impressive maximum allowable deviation of just +/- 3%, it exceeds the standard requirement of +/- 4%, ensuring superior accuracy for your tasks.
Designed with a 1/4" square drive that incorporates a ball locking mechanism in accordance with DIN 3120 - A 63 ISO 1174, this wrench is user-friendly, featuring automatic short-path actuation that produces both tactile feedback and an audible indication for ease of use The dual scale displays readings in 1 Nm and 10 lbf·in increments
Crafted from durable aluminum alloy, this wrench strikes a perfect balance between lightweight design and rugged strength, making it a practical choice for any workshop environment.
It guarantees high precision even during prolonged use, providing effortless operation and straightforward adjustments for optimal performance.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A.
•Traceable test certificate provided.
•Calibrated to a maximum permissible deviation of +/- 3 %.

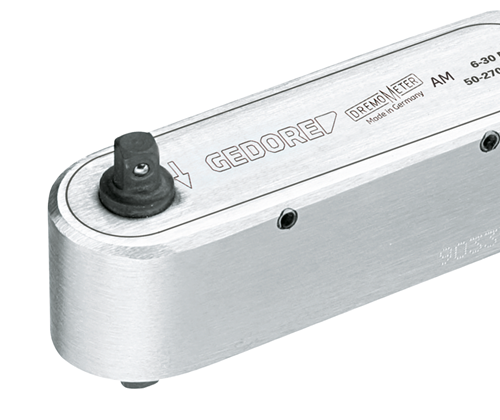

•1/4" square drive with ball locking device.
•Automatic short-path actuation with tactile impulse and audible signal.
•Dual scale with a scale graduation of 1 Nm and 10 lbf·in.
•Lightweight and robust aluminum alloy housing.
•High degree of user safety.
•Extremely low wear due to reduced forces in lever mechanism.
•Long life cycles and tool lives.
•Easy adjustment button secured against loss.
•Assembly.
•Series assembly.
•Production.
•Maintenance.
•Repair.
Specifications:

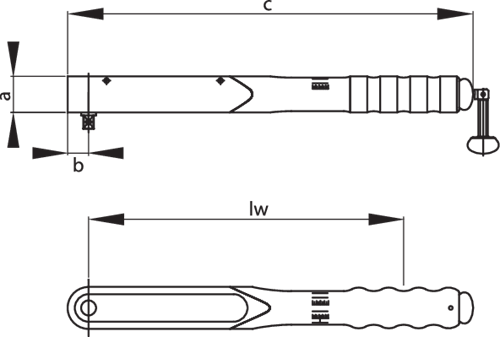

| Total width [mm] | 30 mm |
| Total height [mm] | 51 mm |
| Total length [mm] | 268 mm |
| Net weight [kg] | 0.553 kg |
| Distance housing - square drive | 15 mm |
| Drive type/drive | Double square rigid |
| Drive connector square [metric] | 6.3 mm |
| Drive square inch | 1/4" |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Torque (min.) [lbf·in] | 270 lbf·in |
| Torque (max.) [lbf·in] | 50 lbf·in |
| Torque (max.) [Nm] | 30 Nm |
| Torque (min.) [Nm] | 6 Nm |
| Torque wrench type | AML |
| Fixed setting | No |
| Calibration length | 206 mm |
| Width of head 1 [mm] | 30.0 mm |
| Head height 1 [mm] | 30 mm |
| Precision +/- | +/- 3 % |
| Compliance | compliant |
| Graduation [lbf·in] | 10 lbf·in |
| Scale division [Nm] | 1 Nm |
