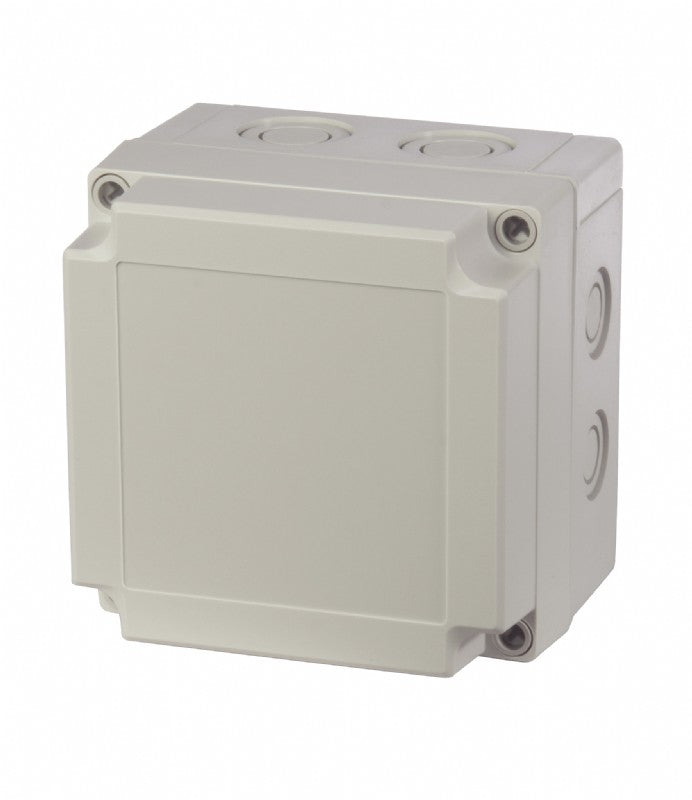

6416323 7.1 x 7.1 x 5.9 inch polycarbonate enclosure with gray cover and metric knock-out base

6416323 7.1 x 7.1 x 5.9 inch polycarbonate enclosure with gray cover and metric knock-out base

SKU: UL PCM 175/150 G   Download PDF

Qty:
Now $9,214.00   Web pricing policy
BEFORE   Now $9,214.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

This product is a 71 x 71 x 59 inch polycarbonate enclosure featuring a gray cover and a metric knock-out base It is designed for durability and protection in various environments The enclosure complies with UL Type 1, 4, 4x, and 6 standards and has an ingress protection rating of IP66 and IP67, ensuring it is dust-tight and can withstand various environmental conditions.

Features and Benefits:

    •UL Type 1, 4, 4x and 6 rated.

    •IP66 and IP67 rating for water and dust resistance.

    •Impact resistance rated IK08.

    •Constructed from durable polycarbonate material.

    •Includes base with PUR gasket and mounting screws.

Specifications:

 Dimensions (inches) 7.1 x 7.1 x 5.9
 Dimensions (mm) 180 x 180 x 150
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
