6229150 - Durable 750x750 mm Vanadium Steel Cross Wrench for Trucks
6229150 - Durable 750x750 mm Vanadium Steel Cross Wrench for Trucks
SKU: SKU: 6229150
Couldn't load pickup availability
Description:

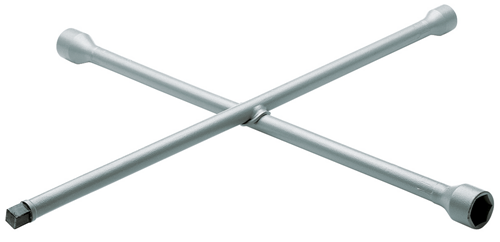

Introducing the versatile cross wrench, designed for heavy-duty applications in trucks, agricultural equipment, tractors, and industrial settings Measuring 24x27x32x3/4" square with a robust 750x750 mm size, this tool adheres to DIN 3119 and ISO 6788 standards Crafted from durable Vanadium steel (31CrV3), it boasts a striking grey powder-coated surface and features a hot forged hexagonal design for enhanced usability.
The GEDORE-style collar increases the welding area, while the positive-fit joint guarantees stability even under the most demanding conditions Ideal for those who require reliability and performance in their toolkit.
Features and Benefits:
•Made from Vanadium steel 31CrV3.
•Grey powder-coated finish.
•Hot forged hexagon design.
•Increased welding area due to collar design.
•Solid positive-fit joint under extreme loads.
•For trucks.
•For agricultural machines.
•For tractors.
•For industrial uses.
Specifications:
| Drive square inch | 3/4" |
| Insert-Ø | 34,5 mm x 45,0 mm x 38,5 mm x 26,0 mm |
| Insert-Ø 1 | 34,5 mm |
| Insert-Ø 2 | 45,0 mm |
| Insert-Ø 3 | 38,5 mm |
| Insert-Ø 4 | 26,0 mm |
| Material | 31CrV3 |
| Surface | grey powder-coated |
| Compliance | compliant |
| Width across flats 1 [mm] | 24 |
| Width across flats 2 [mm] | 27 |
| Width Across Flat 3 [mm] | 32 |
| Width across flats 4 [AF] | 3/4 |
| Width across flats [mm] | 24 x 27 x 32 |
| Dimensions | 750 x 750 mm |
| Total width [mm] | 750 mm |
| Total height [mm] | 46 mm |
| Total length [mm] | 755 mm |
