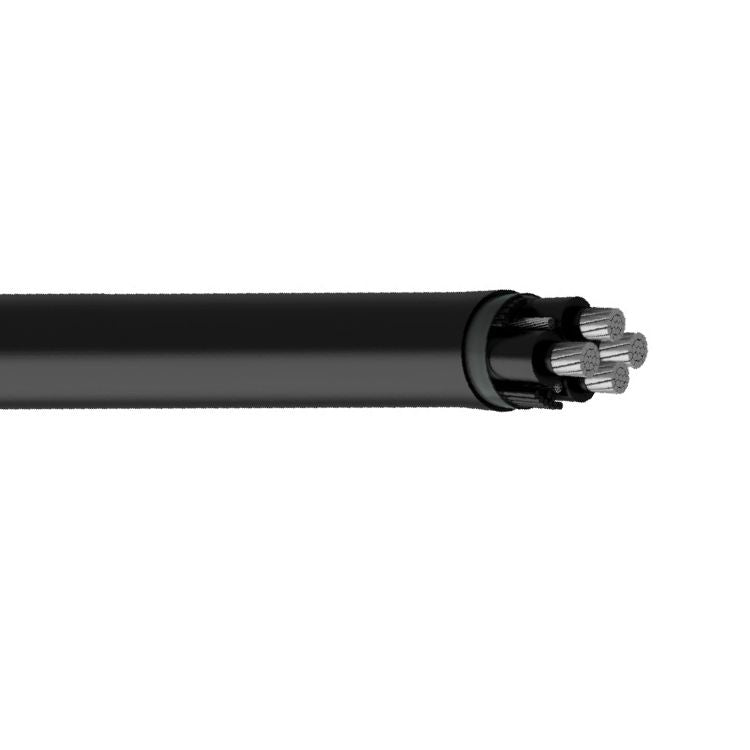

500' 8 AWG 4C Aluminum Tray Cable W/G Type TC-ER UL XHHW-2 Insulation PVC 600V

500' 8 AWG 4C Aluminum Tray Cable W/G Type TC-ER UL XHHW-2 Insulation PVC 600V

SKU: NESALTC13500   Download PDF

Select a Variant:
  • 500' 8 AWG 4C Aluminum Tray Cable W/G Type TC-ER UL XHHW-2 Insulation PVC 600V
Qty:
Now $1,550.00   Web pricing policy
BEFORE   Now $1,550.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

8 AWG 4C Aluminum Tray Cable W/G Type TC-ER UL XHHW-2 Insulation PVC 600V

About :

Aluminum Tray Cable is a versatile and robust electrical cable designed for a wide range of industrial and commercial applications. This cable is specifically engineered to provide reliable power distribution and control in demanding environments. It features a combination of high-quality materials and construction that makes it suitable for various

Also Known As :

8 AWG 4C W/G Aluminum Tray Cable, 8 AWG 4C W/G UL Type TC Cable, 8 AWG 4C W/G TC-ER Cable, 8 AWG 4C W/G 600V Tray Cable, 8 AWG 4C W/G XHHW-2 Insulated Cable, 8 AWG 4C W/G PVC Jacketed Cable, 8 AWG 4C W/G Tray Cable, 8 AWG 4C W/G Aluminum Tray Cable, 8 AWG 4C W/G Tray Cable, 8 AWG 4C W/G TC XLPE Cable PVC Tray Cable 600V.

Conductors:

Class B compact stranded aluminum alloy (8000 Series) per ASTM B800 and ASTM B801

Insulation:

Flame retardant Cross-linked Polyethylene (FR-XLPE) that is heat and moisture resistant. XHHW-2 per UL 44

Ground:

Green insulated Class B compact stranded aluminum alloy (8000 Series)

Jacket:

Heat, oil, moisture, and sunlight resistant black Polyvinyl Chloride (PVC) applied over a taped assembly rated 90°C wet or dry per UL 1277

Resources
Applications
Primarily used for power, control, signal, communication, and lighting circuits in commercial and industrial environments. Suitable for installation in cable trays, supported by messenger wire in open air, raceways, channels, conduits, and ducts. Approved for direct burial and outdoors in cable trays where sunlight resistance is required. Also, may be installed in wet or dry locations or in areas exposed to chemicals and oils. Its aluminum alloy conductors are lightweight and provide increased flexibility for easy installation. It is rated 600 volt at temperature not to exceed 90°C for wet or dry locations.
Features
Standards:
• UL Listed as TC-ER (Exposed Run) per UL Standard 1277 and used in accordance with NEC Article 336
• UL 44 Type XHHW-2
• Individual conductors pass UL 2556 Horizontal Flame Test
• UL 1685 FT4/IEEE 1202 Flame Test Compliance
• Approved for Class 1 or 2, Division 2 industrial hazardous locations per NEC
• Rated at 90°C wet or dry
• Oil Resistant PRI/PRII conductors. Gas and Oil Res GRI/GRII conductors
Specifications
Part Number: 8-04TCG-XLP-ALUM
Conductor Size: 8 AWG
No. of Conductors: 4
Ground Wire Size: 8
Insulation Thickness: 0.045 Inches
Jacket Thickness: 0.060 Inches
Overall Diameter: 0.75 Inches
Weight: 0.25 lbs
Ampacity 75°C: 32 amps
Ampacity 90°C: 36 amps
