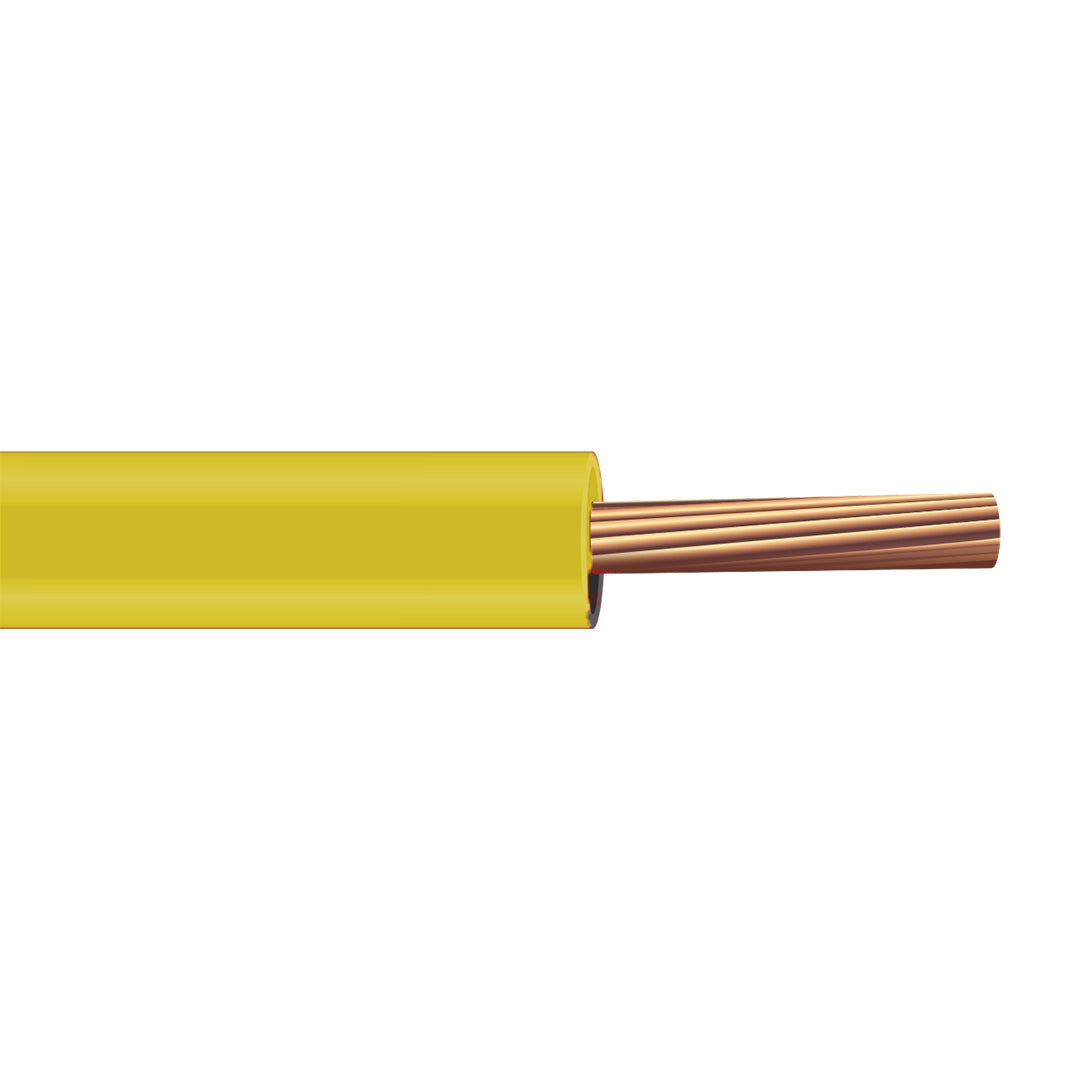

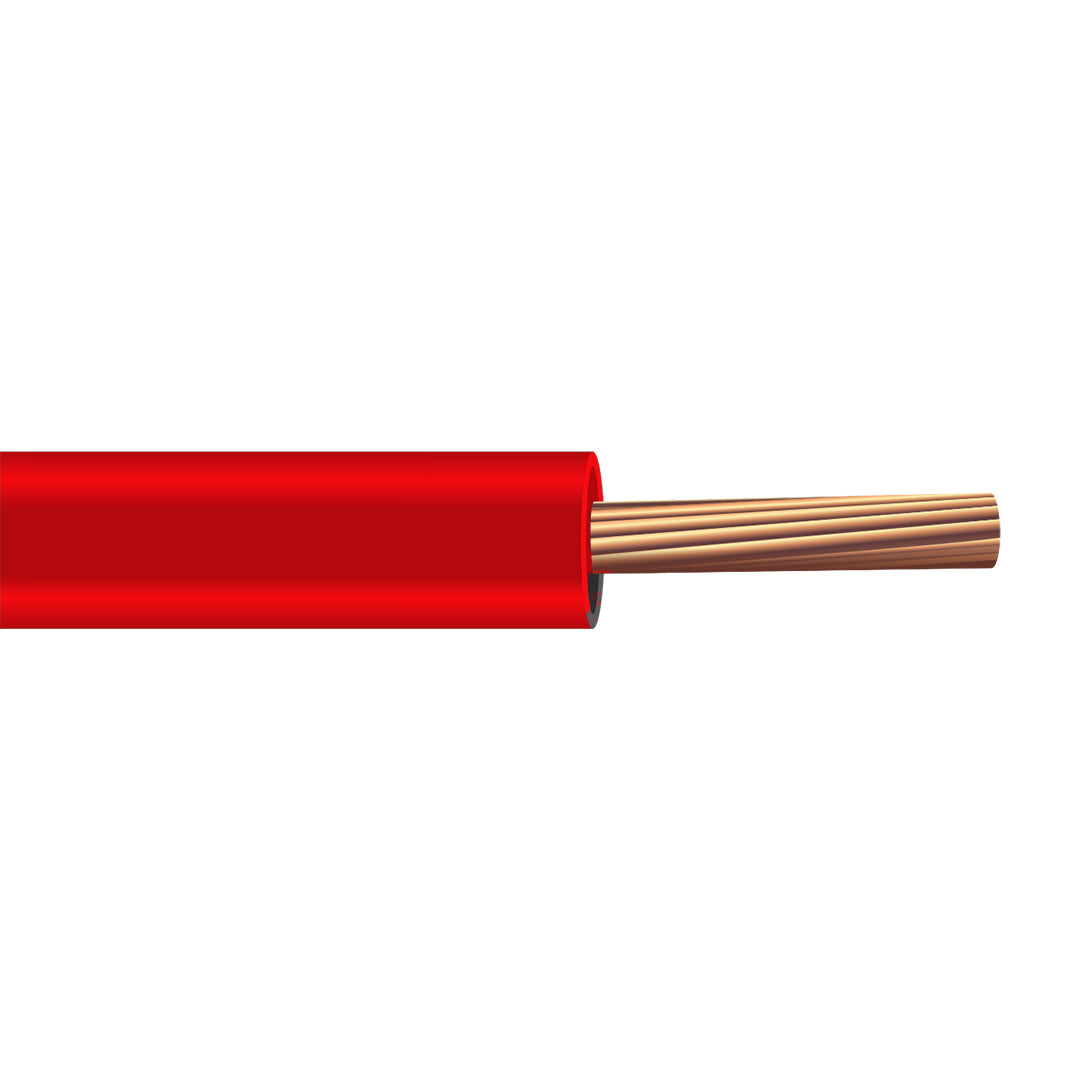

500' 6 AWG FAA Type L-824C Airport Lighting Cable 5000V

6 AWG FAA Type C L-824C Airport Lighting Cable 5000V

Allowable Ampacity For 6 AWG FAA Type C L-824C Airport Lighting Cable 5000V: 100 amp

Applications:

Airport Lighting Electrical Cables are used in runway and taxiway airport lighting systems, airport lighting circuits, control circuits, runways, taxiways, navigational aids, obstruction lighting (such as LED, Xenon, and Incandescent light fixtures), and miscellaneous conduit, duct, aerial, and direct burial applications. Airport runway lighting cable is built for usage in between the constant current source and the isolating transformers in the series lighting circuits. The cable is rugged, has excellent abrasion and jam resistance, and is not affected by de-icing fluid chemicals. Airport electrical Cable is rated at 5000 volts.

Also Known As:

6 FAA-L-824 5000V Airfield Lighting Cable, 6 FAA-L-824 5000V Airfield Ground Lighting Cable, 6 FAA-L-824 5000V Airport Cable, 6 FAA-L-824 5000V Airfield Cable, 6 FAA-L-824 5000V L284 type C cable, 6 FAA-L-824 5000V Runway Lighting Cable.

Standards:

• ICEA S-66-524
• FAA-L-824
• RoHS
• ASTM B 8

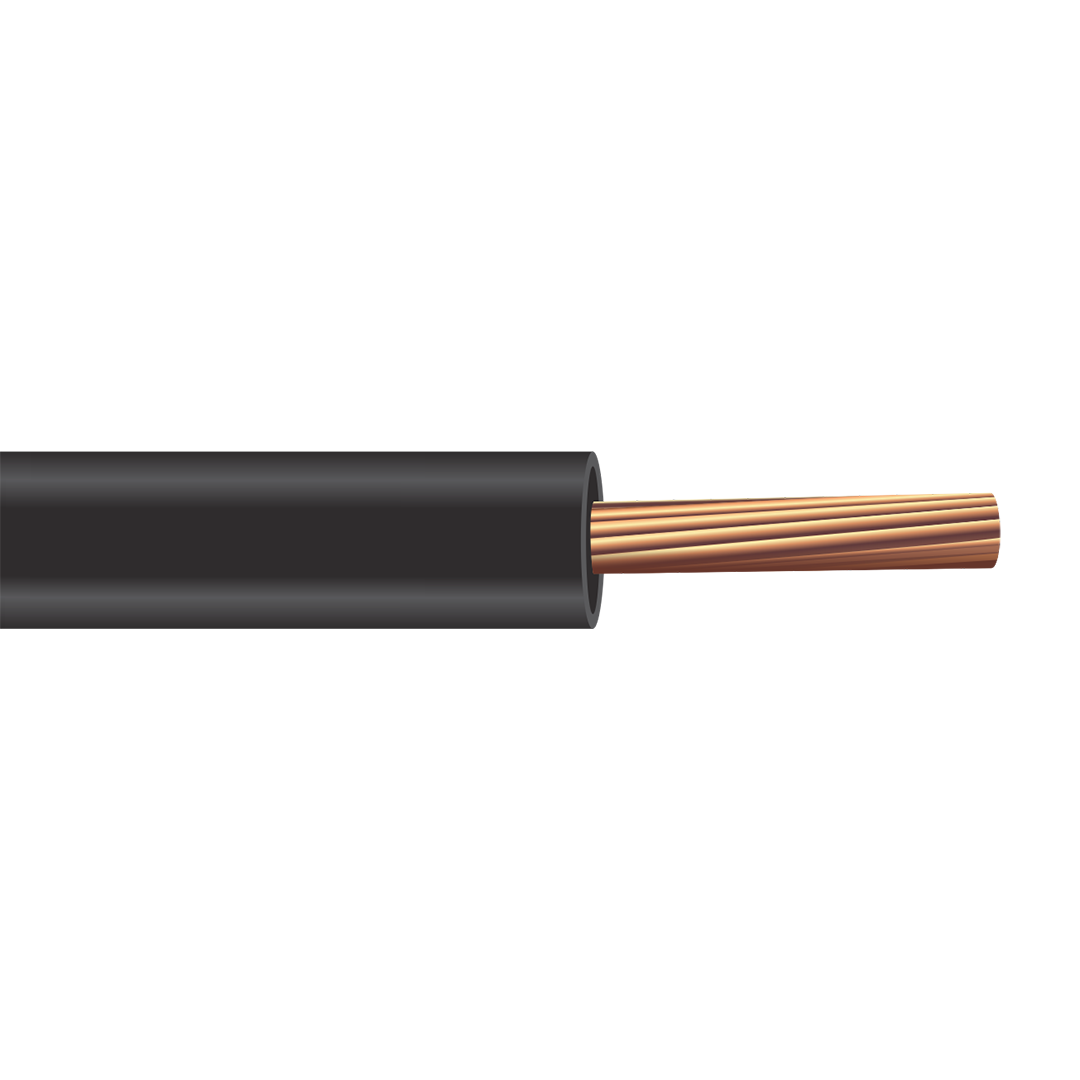

Construction:

Conductor:

 Fully annealed stranded bare copper with a class B stranding per ASTM B 8.

Insulation:

Black Cross-Linked Polyethylene (XLPE) over the semi-conductive stress control layer.

Specification:

• AWG Size: 6
• Stranding: 7
• Insulation Thickness: 0.110 inches
• Outside Diameter: 0.420 inches
• Net Weight (Lbs/1000 FT): 0.125
