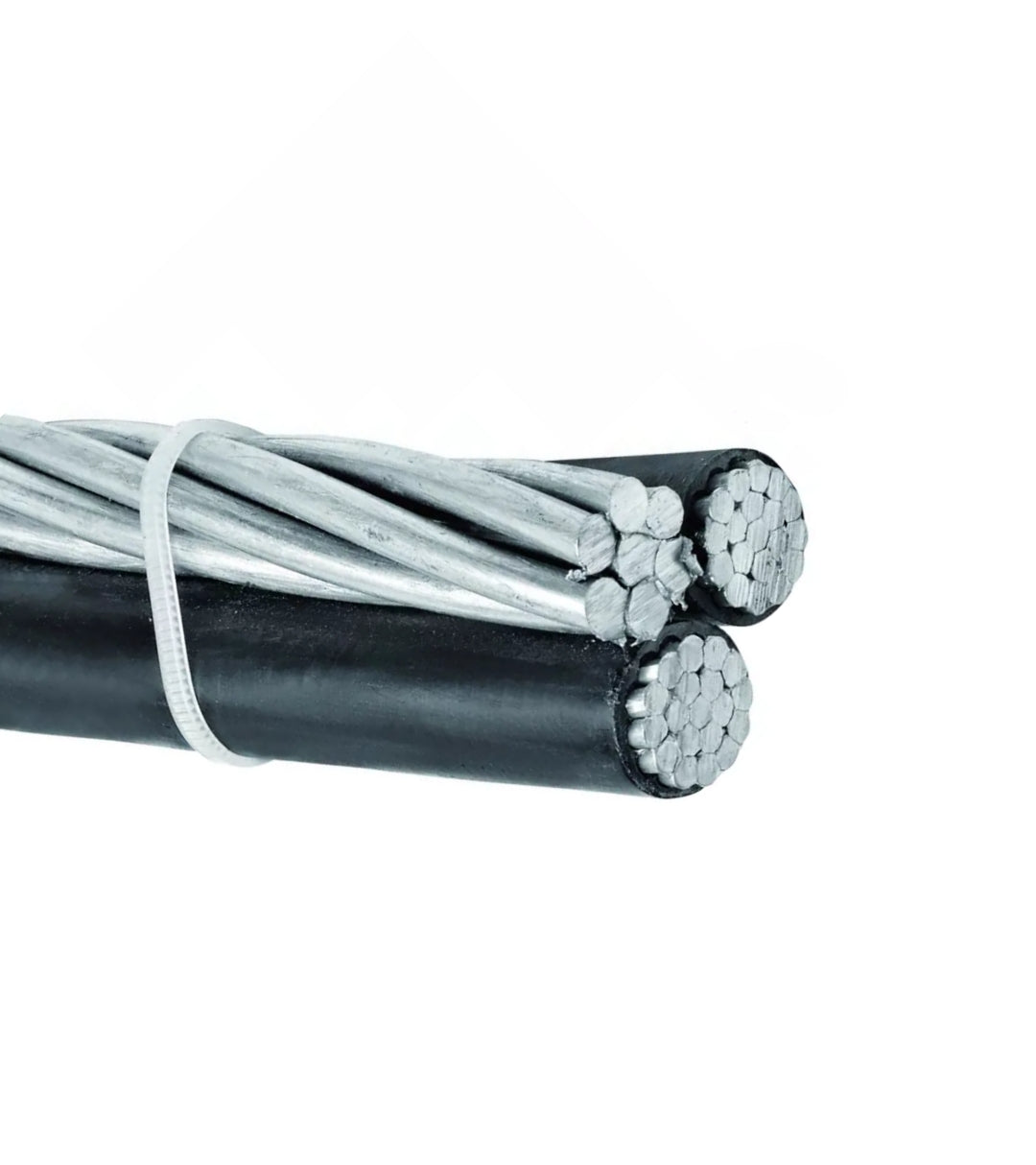

4-4-6 Strombus Aluminum Triplex Overhead Service Drop Cable

Allowable Ampacity for 4-4-6 Strombus Aluminum Triplex Overhead Service Drop Cable XLP at 90°C: 115 Amps

Allowable Ampacity for 4-4-6 Strombus Aluminum Triplex Overhead Service Drop Cable Poly at 75°C: 90 Amps

Applications:

Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.

Also Known As:

4-4-6 strombus triplex aluminum wire, 4-4-6 strombus triplex overhead wire, 4-4-6 strombus aluminum triplex, 4-4-6 strombus triplex conductor, 4-4-6 strombus overhead aluminum wire, 4-4-6 strombus aluminium overhead cables, 4-4-6 strombus overhead service drop conductors.

Standards:

• ASTM B-230

• ASTM B-231

• ASTM B-232

• ASTM B-399

• ICEA S-76 - 474

Construction

Conductors:

Triplex aluminum wire has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.

Specifications:

• Size AWG: 4

• Stranding: 7/w

• Insulation Thickness (mils): 0.045

• Neutral Size AWG: 6

• Weight lbs./1000ft: XLP: 151

• Weight lbs./1000ft: Poly: 148

• Ampacity: XLP: 115

• Ampacity: Poly: 90

[/short]

Application:

Aluminum Triplex Overhead cable is designed for use to supply power from utility lines to the consumer weather head. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum.

Conductors:

Aluminum Triplex Overhead cable has concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Aluminum Triplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Aluminum Triplex Overhead cable has a black cross linked polyethylene (XLP) insulation.

Standards:

• ASTM B-230
• ASTM B-231
• ASTM B-232
• ASTM B-399
• ICEA S-76 - 474
