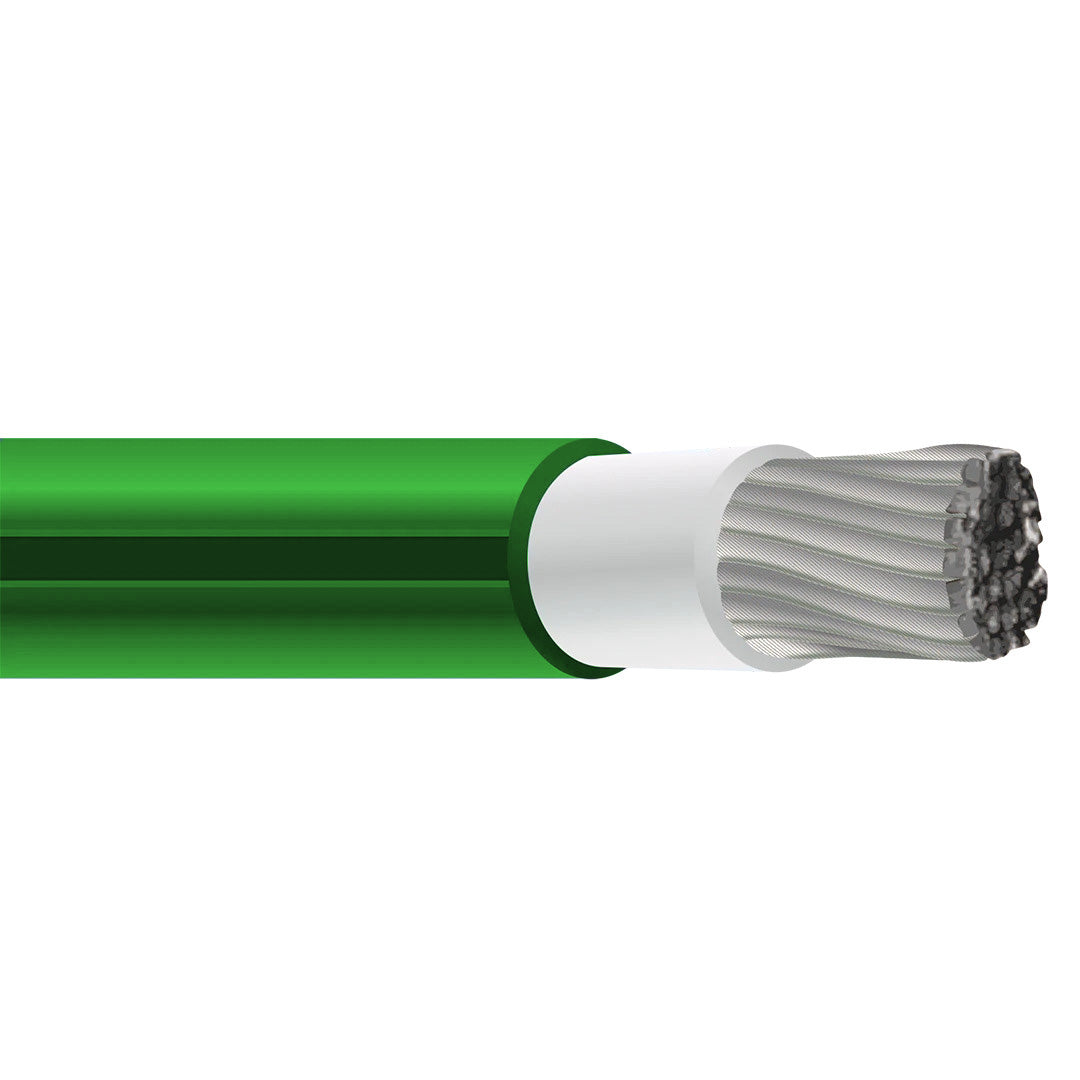

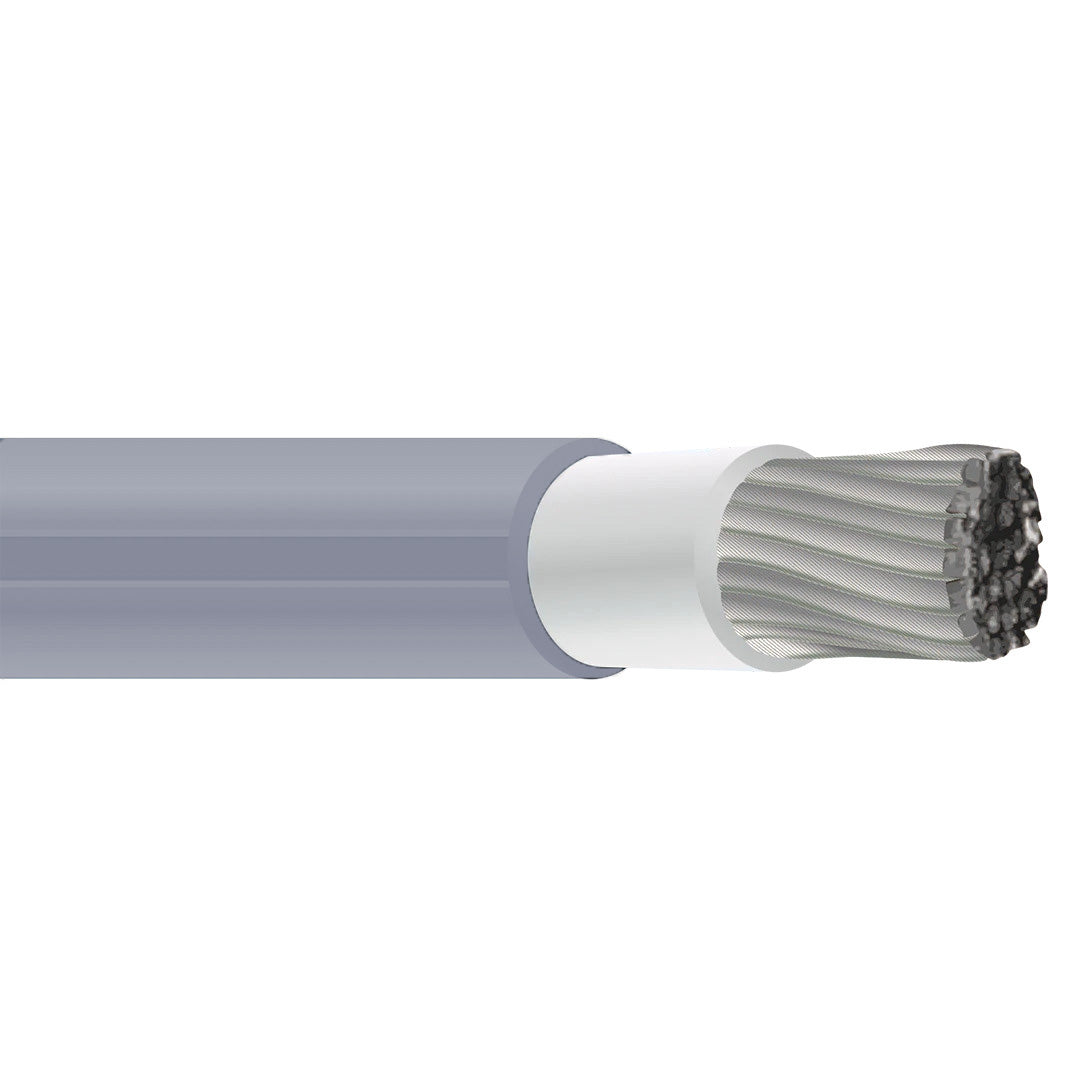

350 MCM Telcoflex II Ks24194 L2 Central Office Power Wire

350 MCM Telcoflex II Ks24194 L2 Central Office Power Wire

SKU: SKU: TELII350GR Download PDF

Color:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price Now $24.36 /FT
Regular price BEFORE   Sale price Now $24.36 /FT
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

350 TELCOFLEX II Central Office Power Cable, 350 TELCOFLEX II Telephone Central Office Power Cable, 350 TELCOFLEX II Telecom Power Wire

Conductors:

Class I stranded tinned copper conductor for increased flexibility in accordance with ASTM B-33 & B-172 and covered with a mylar tape.

Insulation:

Low Smoke Zero Halogen LSZH cross linked polyolefin XLPO insulation, which is rated 90°C
Maximum conductor operating temperature: 90°C dry, 75°C wet or dry, maximum short circuits 250°C
Colors and sunlight resistance available upon request.

Compatible with Manufacturer

Priority Wire & Cable : Black : 350-01COP-124194-L2
Omni Cable :  Black : TF2350-01
AWC : Black : TELCO-350-L2
Southwire :

Black : 56979701
Blue : 56979901
Gray : 56980101
Green : 56980301
Red : 56980401

Resources
Applications
Type L2 Central Office Power Cable is a rugged; RHH/RHW rated wire for 600V applications. Central Office Power Cable is suitable for use in telecommunication applications and for power distribution of AC and DC power in conduit or cable trays. Central Office Power Cable is available in a variety of colors.
Features
Standards:
•UL listed Power Cable for Telephone Central Office Applications
•1/0 and larger listed and marked FT4 and for CT use
•ST1 per UL1685 Vertical Tray Flame Test
•Meets UL VW-1 flame test
•Passes IEEE 1202, FT4 Vertical Tray Flame Test
•UL 44 Thermoset Insulated Wires and Cables
•Meets Telecordia specification GR-347-CORE
•CSA C22.2 No. 38 Thermoset-Insulated Wires and Cables,
•RW90

•Allowable Ampacity for 350 MCM Telcoflex II KS24194 L2 Central Office Power Wire: 350 Amps
Specifications
•Size AWG: 350
•No. of Strands: 888
•Conductor Diameter inches: 0.760
•Insulation Min. Avg. Thickness mils: 95
•Overall Diameter inches: 0.960
•Net Weight lbs/kft: 1323
•Max DC Resistance @20C ohms/kft: 0.0334
•Current Capacity** amps: 350
