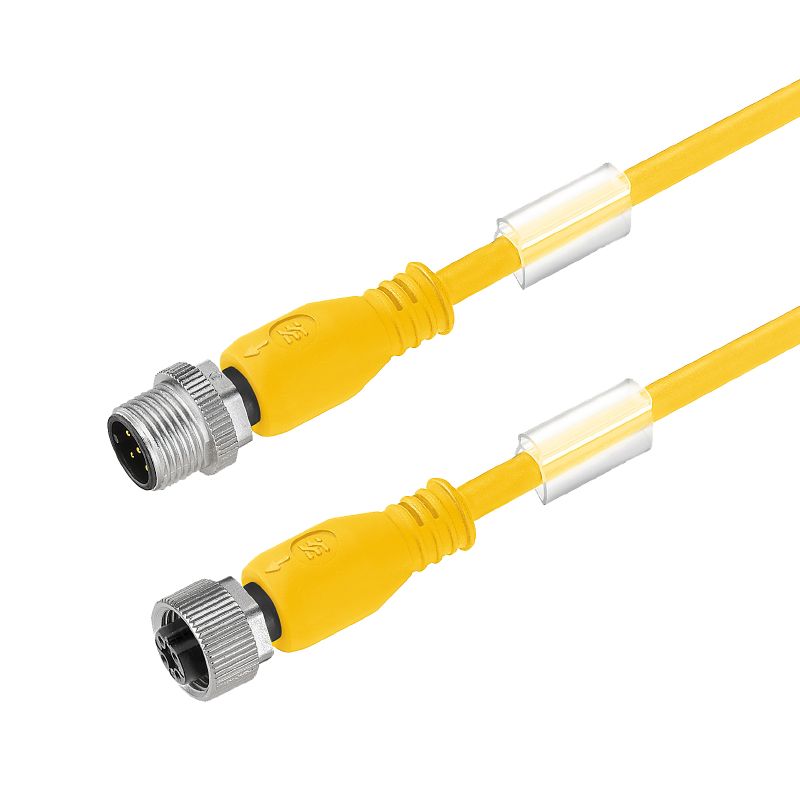

2812800500 - 5m M12 5-Pole Sensor/Actuator Line, PUR Sheath
2812800500 - 5m M12 5-Pole Sensor/Actuator Line, PUR Sheath
SKU: SKU: 2812800500 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile sensor/actuator line equipped with M12 connectors, designed for seamless connections This model features a robust 5-pole configuration and extends to a flexible length of 5 meters, providing ample reach for your projects The setup includes a straightforward socket-to-socket connection and utilizes unshielded wiring, making it straightforward to integrate into existing systems.
Crafted from halogen-free PUR material, this product prioritizes safety and durability, perfect for a variety of applications Please note, this line does not come with LED indicators.
Features and Benefits:
•Temperature range for moving applications from -40 to 105 °C.
•Temperature range for stationary use from -30 to 105 °C.
•High torsion resistance of 360 °/m.
•Resistance to welding beads.
•Suitable for cable carriers.
•Gold-plated contact surface.
Specifications:
| Cable Length | 5 m |
| Core Cross-Section | 0.34 mm² |
| Number of Poles | 5 |
| Sheath Material | PUR |
| Insulation | TPE |
| Nominal Voltage | 60 V |
| Nominal Current | 4 A |
| Protection Degree | IP65, IP66, IP67, IP68 |
| Temperature Range of Housing | -25…+85 °C |
| Tightening Torque | M12: 0.8 - 1.2 Nm |
| Connection Thread | M12 / M12 |
| Housing Main Material | PUR |
| UL Approval | E307231 |
