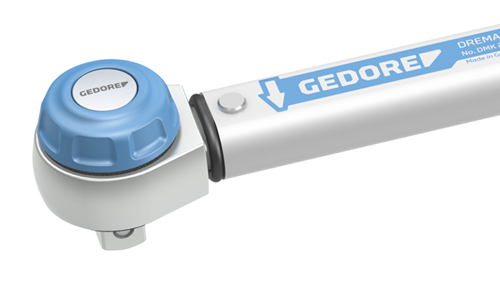

2641283 - 3/4" Adjustable Torque Wrench 150-750 Nm with Ratchet Mechanism
2641283 - 3/4" Adjustable Torque Wrench 150-750 Nm with Ratchet Mechanism
SKU: SKU: 2641283
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience precision and reliability with this robust tubular torque wrench, calibrated for controlled screw tightening within a range of 150 - 750 Nm (110 - 550 lbf·ft) Engineered for both industrial and trade applications, it features an integrated ratchet and square drive Complying with DIN EN ISO 6789-2:2017 Type II Class A standards, this tool includes a traceable test certificate and is accurate with a maximum permissible deviation of +/- 3%, surpassing the standard requirement of +/- 4%.
This versatile model allows for controlled right-hand and left-hand fastening, with the DMK series boasting a 1/2" mushroom head interchangeable square that features a convenient push-button release and ball-locking mechanism The DMK 400 model includes a durable 3/4" push-through square with a secure pin-locking mechanism
Constructed from sturdy, varnished tubular steel with a zinc-plated ratchet head and high-quality plastic components, this wrench offers enhanced longevity.
Its ergonomic plastic handgrip is equipped with a calibration aid for easy and precise adjustments Switching between the main Nm scale and the ancillary lbf·ft scale minimizes the chance of reading errors, while the integrated micrometre scale allows for interim value settings
The release system provides a tactile and audible feedback for added assurance With an ergonomic torque adjustment system marked with a reference symbol, rapid settings can be easily achieved with a hexagon allen key (not included).
This tool also features a reliable and secure adjusting/setting system, making it a must-have for professionals seeking accuracy and durability.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A.
•Incl. traceable test certificate.
•Calibrated to a maximum permissible deviation of +/- 3 %.
•Sturdy, varnished tubular steel construction.
•Ergonomically shaped plastic handgrip.
•Change-over between Nm main scale and lbf·ft ancillary scale.
•Release system triggers a tactile and audible signal.
•Rapid setting with hexagon allen key provision.
•Assembly.
•Production.
•Maintenance.
•Repair.
Specifications:
| Total width [mm] | 69 mm |
| Total height [mm] | 51 mm |
| Total length [mm] | 1.230 mm |
| Distance housing - square drive | 34.5 mm |
| Drive type/drive | Push-through square |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Number of teeth | 36 |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 550 lbf·ft |
| Torque (min.) [lbf·ft] | 110 lbf·ft |
| Torque (max.) [Nm] | 750 Nm |
| Torque (min.) [Nm] | 150 Nm |
| Fixed setting | No |
| Calibration length | 1121.4 mm |
| Width of head 1 [mm] | 69.0 mm |
| Head height 1 [mm] | 38 mm |
| Material | Tubular steel construction, top-grade plastic parts |
| Vernier Nm | 1 Nm |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Return angle | 10 ° |
| Graduation [lbf·ft] | 10 lbf·ft |
| Scale division [Nm] | 10 Nm |
