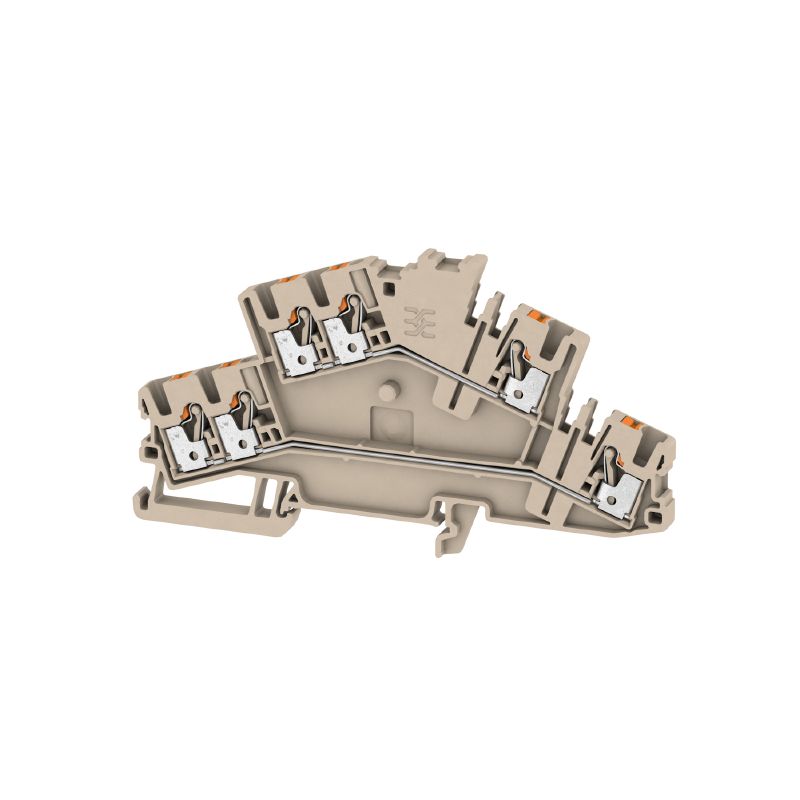

2531290000 - 2.5 mm² Push In Terminal Rated 800V, 22A (Pack of 50)

2531290000 - 2.5 mm² Push In Terminal Rated 800V, 22A (Pack of 50)

SKU: SKU: 2531290000   Download PDF

Select a Variant:
  • 2531290000 - 2.5 mm² Push In Terminal Rated 800V, 22A (Pack of 50)
Qty:
Regular price Now $176.97   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $176.97 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This feed-through terminal is engineered for double-tier connections, equipped with a user-friendly PUSH IN feature It supports a wire size of 25 mm² and can handle voltages up to 800 V with a current rating of 22 A Its dark beige color adds a sophisticated touch, and it meets RoHS compliance Certified under UL listings E60693 and E184763, this terminal guarantees reliability and safety for your electrical projects.

Features and Benefits:

    •RoHS compliant without exemptions.

    •Explosion-tested version.

    •Snap-on type of fixing.

    •Compatible with TS 35 mounting rail.

    •Suitable for use within a temperature range of -25 °C to 55 °C.

Specifications:

 Depth 64 mm
 Width 5.1 mm
 Height 114.5 mm
 Net weight 18.438 g
 Max voltage (ATEX) 550 V
 Current (ATEX) 20 A
 Wire cross section max. (ATEX) 2.5 mm²
 Rated voltage 800 V
 Rated DC voltage 800 V
 Nominal current 22 A
 Standards IEC 60947-7-1
 Rated cross-section 2.5 mm²
 Volume resistance according to IEC 60947-7-x 1.33 mΩ
 Rated impulse withstand voltage 8 kV
