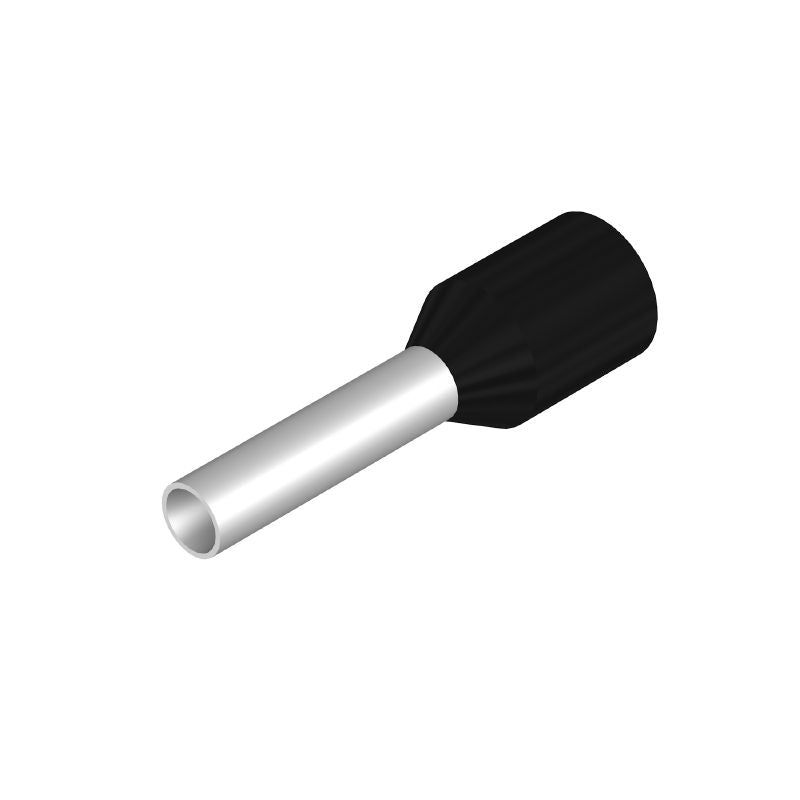

2528620000 - Black 14mm Wire-end Ferrule, RoHS Compliant, 1.5mm² (Pack of 4000)
2528620000 - Black 14mm Wire-end Ferrule, RoHS Compliant, 1.5mm² (Pack of 4000)
SKU: SKU: 2528620000 Download PDF
- 2528620000 - Black 14mm Wire-end Ferrule, RoHS Compliant, 1.5mm² (Pack of 4000)
- 2528620000 - Black 14mm Wire-end Ferrule, RoHS Compliant, 1.5mm² (Pack of 4000)
Couldn't load pickup availability
Description:
Enhance your wiring projects with these black wire-end ferrules, conveniently packaged on a reel Featuring a standard design, these ferrules have a collar diameter of 39 mm and comply fully with RoHS regulations They are engineered to fit a conductor cross-section of 15 mm² and boast a contact surface diameter of 17 mm With a total length of 14 mm and a simple length of 8 mm, the ferrules have a metal sleeve thickness of 0.
15 mm and a plastic collar thickness of 025 mm A stripping length of 10 mm is recommended, and these ferrules can connect with wires up to AWG 16 Perfect for your electrical needs, ensuring reliable connections every time.
Features and Benefits:
•Compliant with RoHS regulations.
•Wire-end ferrules available on a reel.
•Standard design.
Specifications:
| Collar diameter (D2) | 3.9 mm |
| Conductor cross-section | 1.5 mm² |
| Contact surface diameter (D1) | 1.7 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 16 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
