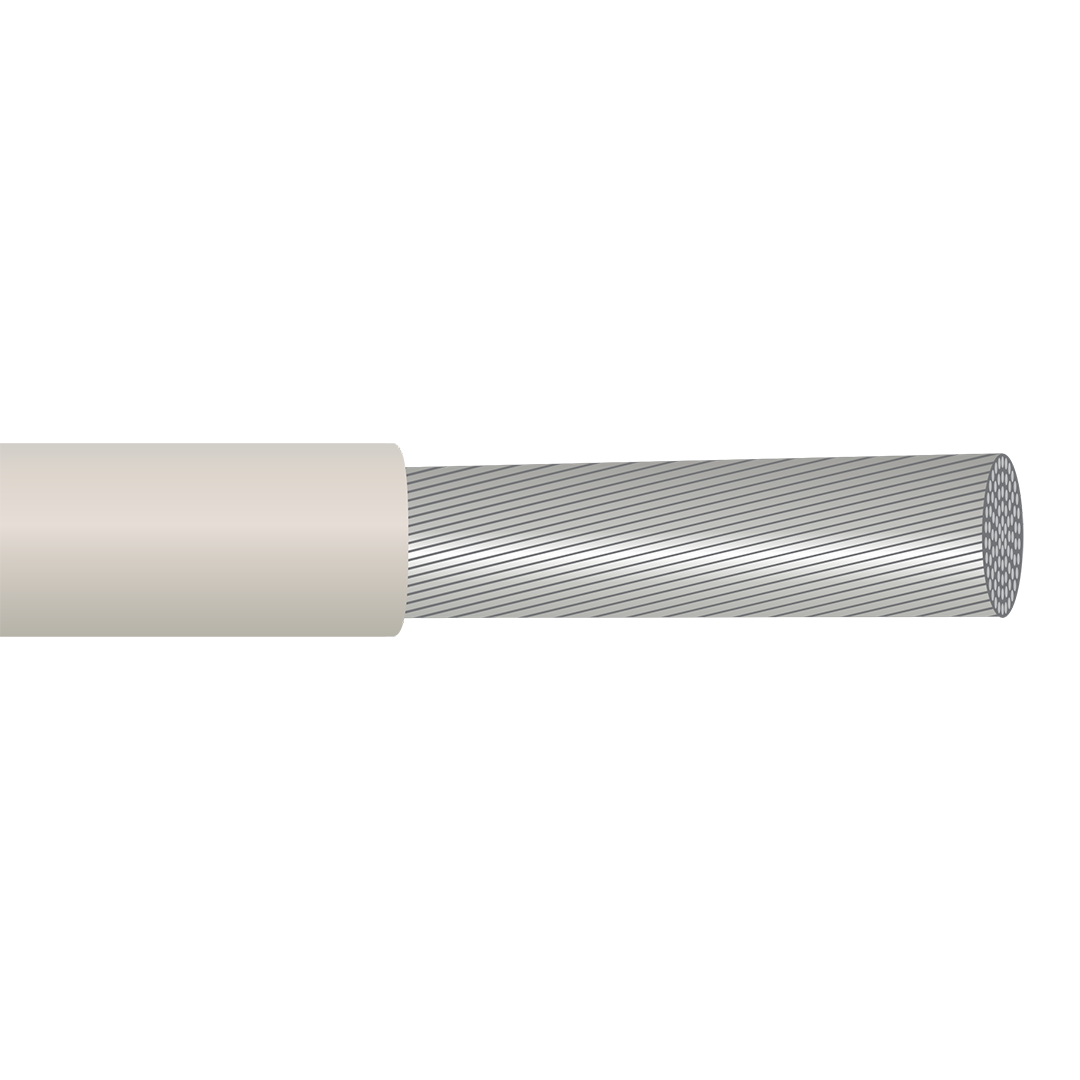

500'18 AWG High Temperature Stranded UL 5256/5196 250°C TGGT Wire

Allowable Ampacity For 18 AWG High Temperature Stranded UL 5256/5196 250°C TGGT Wire: 20 Amps

Applications:

High Temperature Stranded UL 5256/5196 250°C TGGT Wire is designed for residential and industrial applications, including ovens, home electric heating equipment, industrial dryers, etc.  Maximum recommended temperature is 250°C. The voltage rating of the electrical wire is 600v.

Also Known As:

18 High Temperature Stranded UL 5256/5196 250°C TGGT Cable, 18  High Temp Stranded UL 5256/5196 250°C TGGT Wire, 18 UL 5256/5196 TGGT Wire, 18 Fire Resistant TGGT Wire, 18 Oven TGGT Wire.

Standards:

• • Ul Listed
• • CSA Certified

Construction:

Conductor:

TGGT features a single-stranded, nickel-coated copper conductor.

Insulation:

 The insulation is made of PTFE Tape/Fiberglass Serving/Fiberglass Braid treated with High-Temp Saturant

Jacket:

Braided-glass yarn with an abrasion-resistant finish.

Specifications:

• • Size: 18 AWG
• • Number of Strands: 19
• • Insulation Thickness: 0.010 inches
• • Braid Thickness: 0.008 inches
• • Outside Diameter: 0.110 inches
• • Weight: 0.013 lbs per ft
• • Ampacity: 20 Amps
• • Voltage: 600 Volts
• • Max Temp: 250°C
