Description:

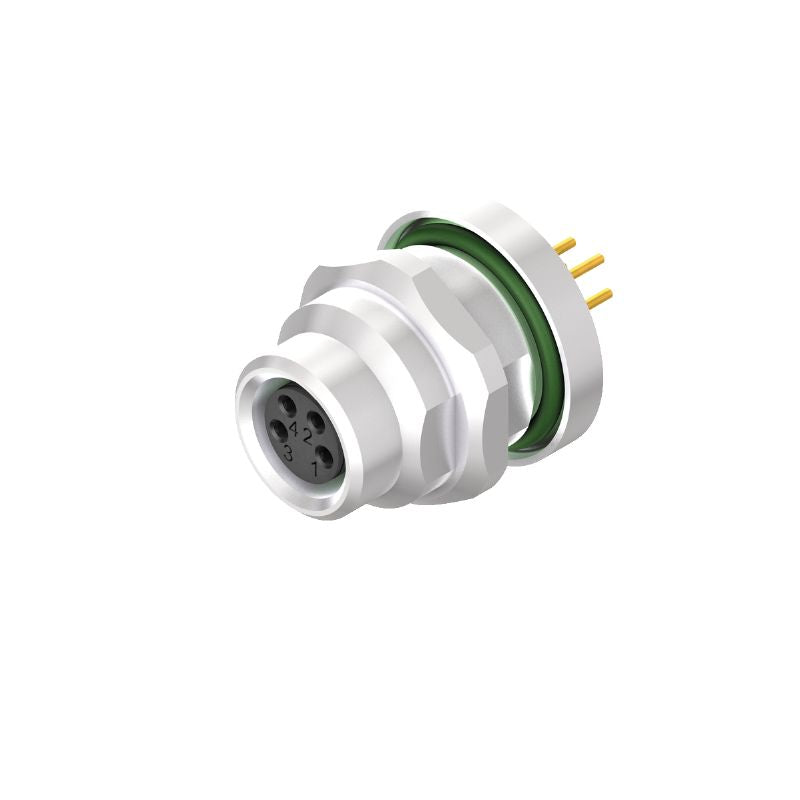

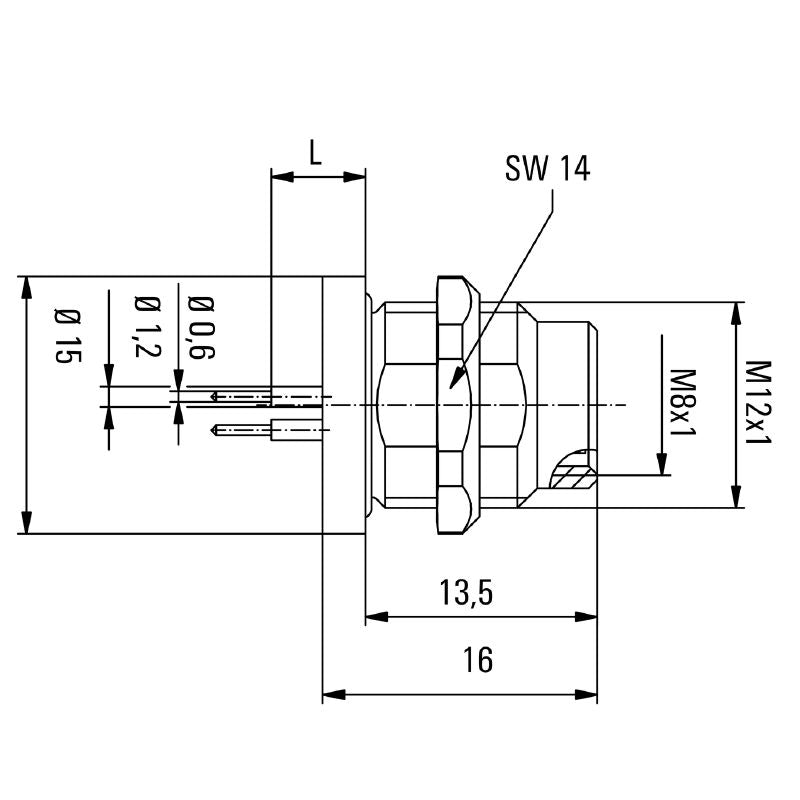

Introducing the SAIE-M8B-5B-H55TL, a versatile built-in plug socket perfect for a range of applications This model is equipped with five poles and features a sturdy M12 mounting thread for secure installation Constructed from nickel-plated CuZn, it offers excellent durability, with a compact installation height of just 55 mm
The socket meets RoHS compliance standards and can handle rated voltages of up to 60 V for 3-pole connections, as well as 30 V for 4-, 5-, and 8-pole setups.
It has a nominal current capacity of 4 A and operates effectively in temperatures ranging from -30 to 80 degrees Celsius With an IP67 protection rating, this plug socket provides reliable resistance against both water and dust, ensuring long-lasting performance in various environments.
Features and Benefits:

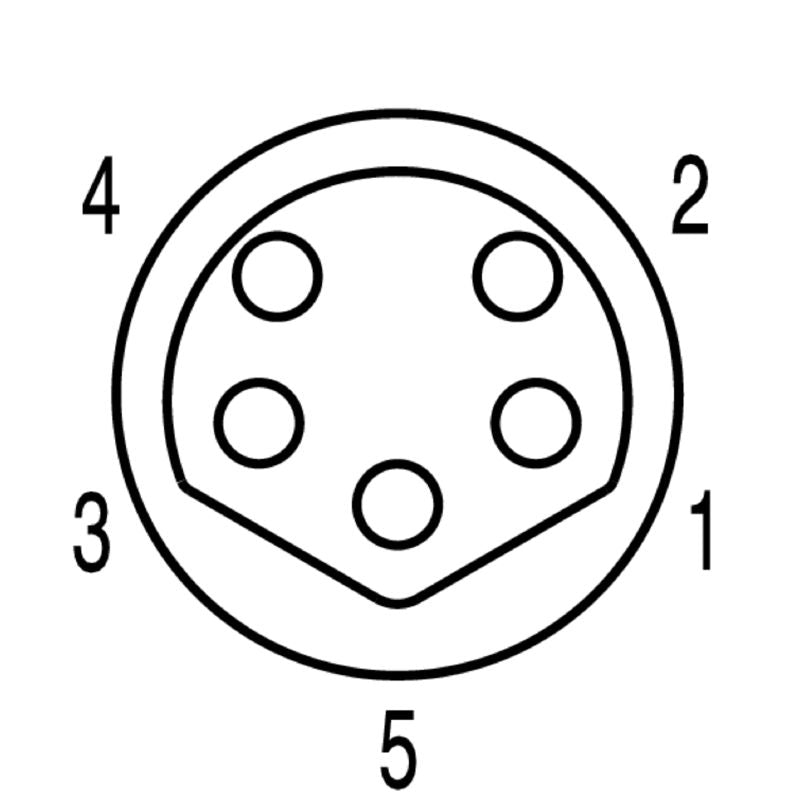

•B-coded for correct installation.

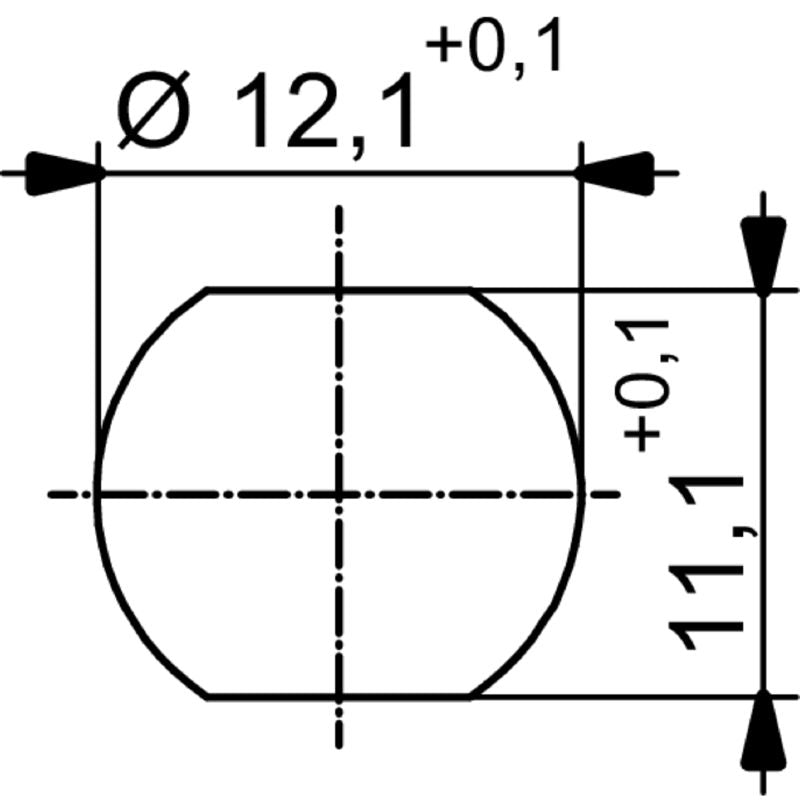

•Rear panel mounted for secure installation.
•Rated for over 100 plugging cycles.
•Nickel-plated lock nut for corrosion resistance.
Specifications:
| Nominal voltage | 30 V |
| Rated voltage | 60 V (3-pole) / 30 V (4-, 5- and 8-pole) |
| Nominal current | 4 A |
| Rated current | 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole) |
| Temperature range | -30…80 °C |
| Protection degree | IP67 |
| Insulation resistance | 100 MΩ |
| Plugging cycles | ≥ 100 |
| Housings | M8 socket |
| Contact surface | Au (Gold) |
| Housing main material | CuZn nickel-plated |
| Connection thread | M8 |
