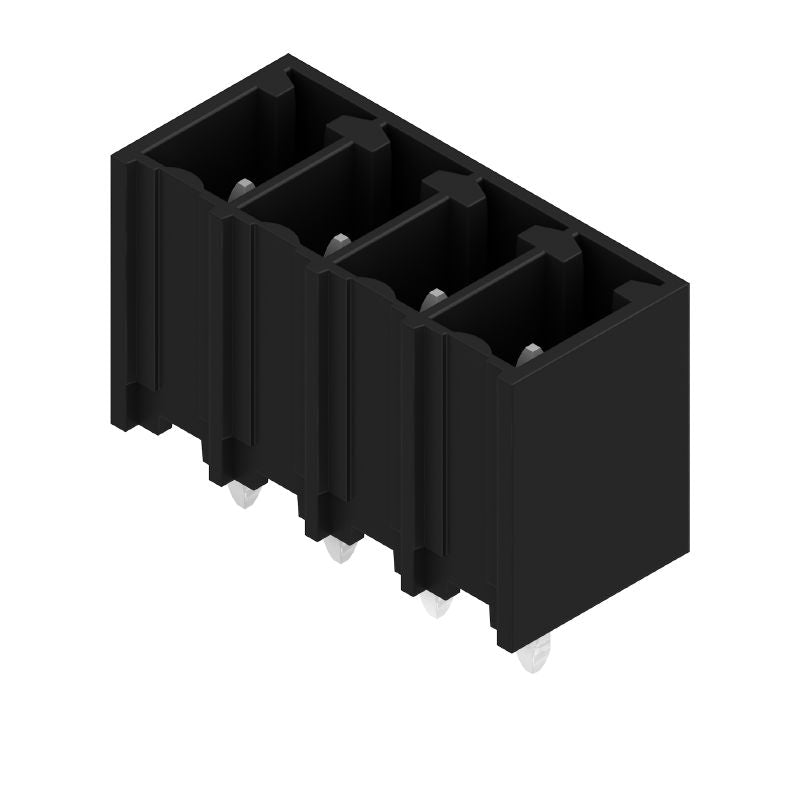

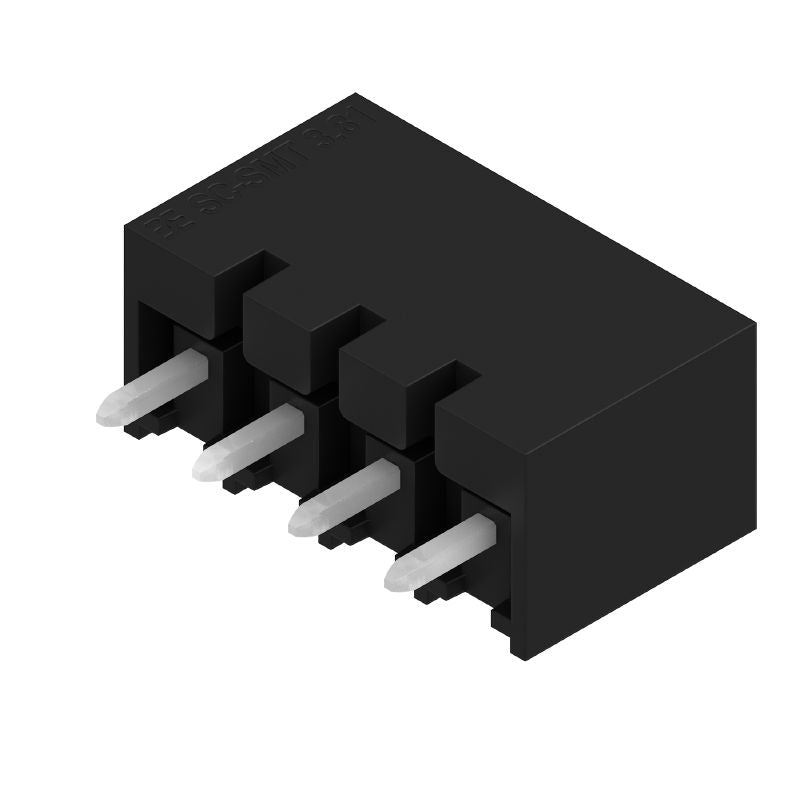

1862950000 - 4-Pole 3.81mm PCB Plug Connector, Black, 3.2mm Pins (Pack of 50)
1862950000 - 4-Pole 3.81mm PCB Plug Connector, Black, 3.2mm Pins (Pack of 50)
SKU: SKU: 1862950000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the SC-SMT 381/04/180G 32SN BK BX male header PCB connector, expertly crafted for reliable THT/THR solder connections This connector features four poles and boasts a 381 mm pitch, designed with a closed side for enhanced performance The solder pin measures 32 mm in length and it comes elegantly finished in black Packaged in a secure box, this connector supports IEC specifications up to 320 V and 17.
5 A, as well as UL standards up to 300 V and 11 A, making it a versatile choice for your electronic projects.
Features and Benefits:
•RoHS compliant without exemptions.
•Touch-safe protection according to DIN VDE 57 106.
•Can be coded for secure connections.
•Designed for THT/THR solder connections.
•Conformity to IPC-A-610 Class 2 standards.
Specifications:
| Depth | 7.07 mm |
| Height | 12.4 mm |
| Width | 15.93 mm |
| Net weight | 0.878 g |
| Rated current (min. number of poles at 20°C) | 17.5 A |
| Rated current (max. number of poles at 20°C) | 13.9 A |
| Rated voltage | 320 V |
| Operating temperature range | -50 °C to 120 °C |
| Material | LCP GF |
| Contact material | Cu-alloy |
| UL 94 flammability rating | V-0 |
