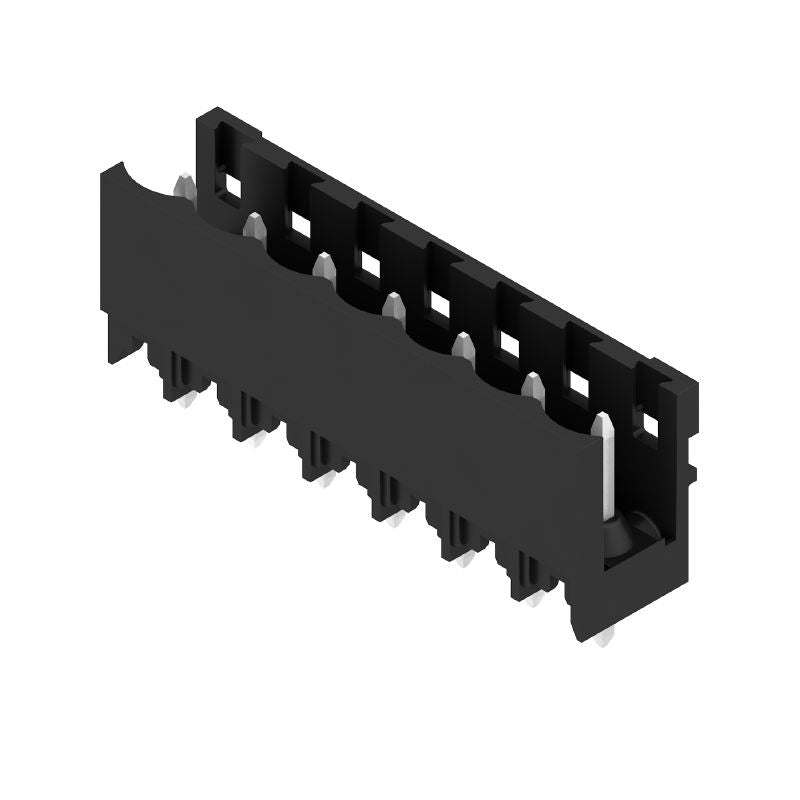

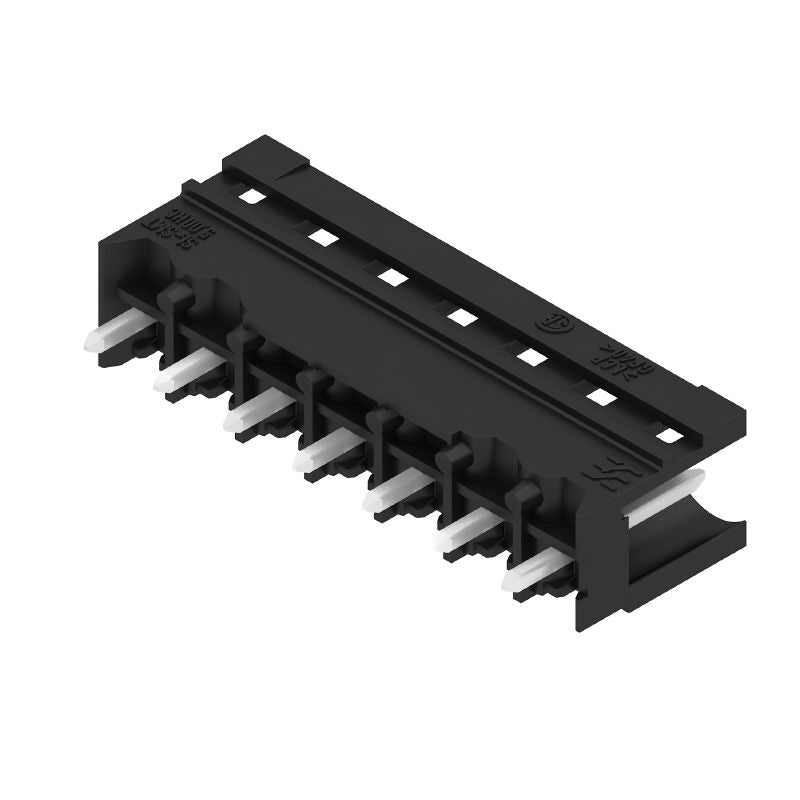

1840970000 - 5.00mm Black PCB Connector, 7-Pole, 180° Angle (Pack of 50)
1840970000 - 5.00mm Black PCB Connector, 7-Pole, 180° Angle (Pack of 50)
SKU: SKU: 1840970000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a reliable PCB plug-in connector, featuring a male header that showcases an open side for enhanced accessibility This connector supports both Through-Hole Technology (THT) and Through-Hole Reflow (THR) soldering methods With a 500 mm pitch, it consists of 7 poles strategically arranged at a 180° angle The solder pin measures 32 mm in length, making it a practical choice for various applications.
Proudly finished in black, each connector is conveniently packaged in a box for easy storage and transport.
Features and Benefits:
•RoHS compliant.
•Can be coded.
•Touch-safe protection acc. to DIN VDE, rated IP20 when plugged and IP10 when unplugged.
•Gold-plated contact surfaces available upon request.
Specifications:
| Rated Voltage (IEC) | 400 V / 27.5 A |
| Rated Voltage (UL) | 300 V / 18.5 A |

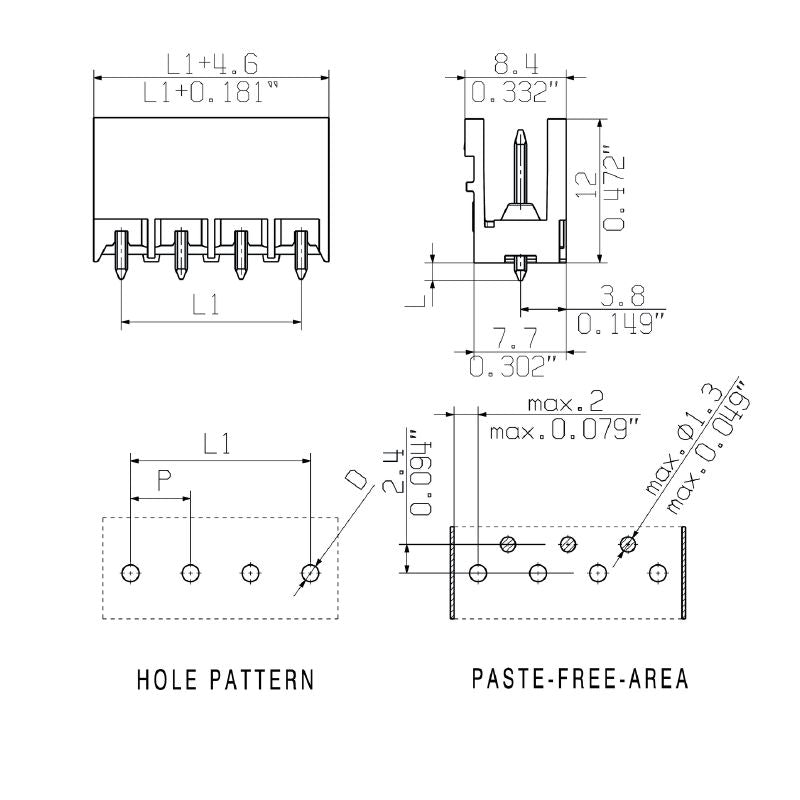

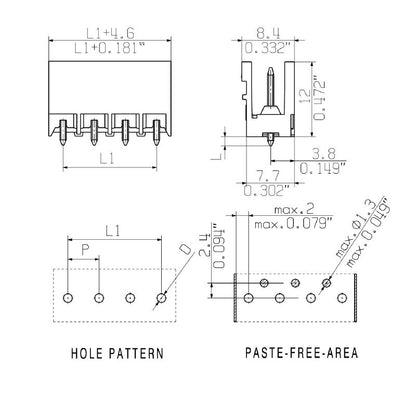

| Depth | 8.5 mm |
| Height | 15.2 mm |
| Width | 35 mm |
| Net Weight | 3.16 g |
| Solder Pin Tolerance | +0.1 / -0.2 mm |
| Operating Temperature Min | -50 °C |
| Operating Temperature Max | 100 °C |
| Storage Temperature Min | -40 °C |
| Storage Temperature Max | 70 °C |
| Moisture Level | 1 |
| UL 94 Flammability Rating | V-0 |
| Contact Material | Cu-alloy |
| Pitch | 5 mm |
| Number of Poles | 7 |
| Plugging Force Max | 7 N |
| Pulling Force Max | 5.5 N |
| Volume Resistance | ≤5 mΩ |
