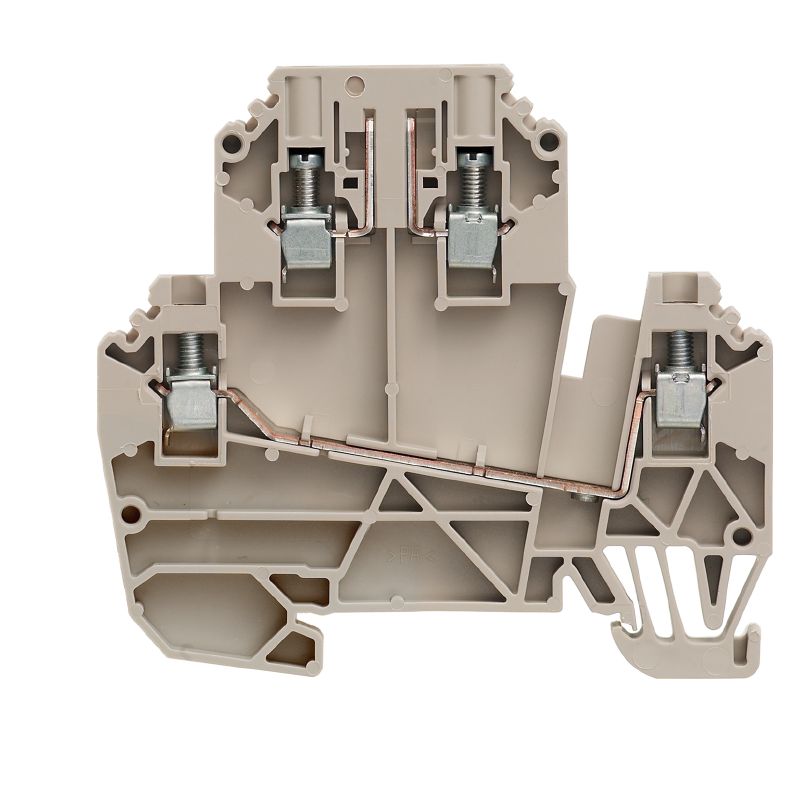

1833600000 - 2.5mm² Test-Disconnect Terminal with 4 Connections (Pack of 50)

1833600000 - 2.5mm² Test-Disconnect Terminal with 4 Connections (Pack of 50)

SKU: 1833600000 Download PDF

Variant:
  • 1833600000 - 2.5mm² Test-Disconnect Terminal with 4 Connections (Pack of 50)
Now $301.59
BEFORE   $0.00 Now $301.59
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable test-disconnect terminal, perfect for secure connections This component features a dark beige hue and is constructed with a dependable screw connection Rated for a cross-section of 25 mm², it supports a maximum current of 24 A and can handle voltage levels of up to 500 V With four connection points and a dual-layer design, it offers enhanced functionality for your wiring needs.

Features and Benefits:

    •Compliant with RoHS standards without exemptions.

    •Includes an end cover plate requirement.

    •Mounts onto a TS 35 rail.

    •Features a screw connection type.

    •Supports multiple wire connection cross sections.

Specifications:

 Dimensions {'Depth': '66 mm', 'Height': '72.5 mm', 'Width': '5.1 mm'}
 Operating Temperatures {'Storage Temperature': '-25 °C...55 °C', 'Ambient Temperature': '-5 °C...40 °C', 'Continuous Operating Temp., Min': '-50 °C', 'Continuous Operating Temp., Max': '120 °C'}
 Material Data {'Basic Material': 'Wemid', 'UL 94 Flammability Rating': 'V-0'}
 Connection Data {'Clamping Range, Max': '4 mm²', 'Clamping Range, Min': '0.5 mm²', 'Stripping Length': '8 mm', 'Tightening Torque, Max': '0.6 Nm', 'Tightening Torque, Min': '0.5 Nm'}
 Rated Data {'Rated Cross-section': '2.5 mm²', 'Rated Voltage': '500 V', 'Nominal Current': '24 A'}
 CSA Rating Data {'Current Size C (CSA)': '20 A', 'Voltage Size C (CSA)': '300 V'}
