1833380000 - 10mm² Feed-Through Terminal Block with 57A Rating (Pack of 50)

1833380000 - 10mm² Feed-Through Terminal Block with 57A Rating (Pack of 50)

SKU: SKU: 1833380000   Download PDF

Select a Variant:
  • 1833380000 - 10mm² Feed-Through Terminal Block with 57A Rating (Pack of 50)
Qty:
Regular price Now $92.60   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $92.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

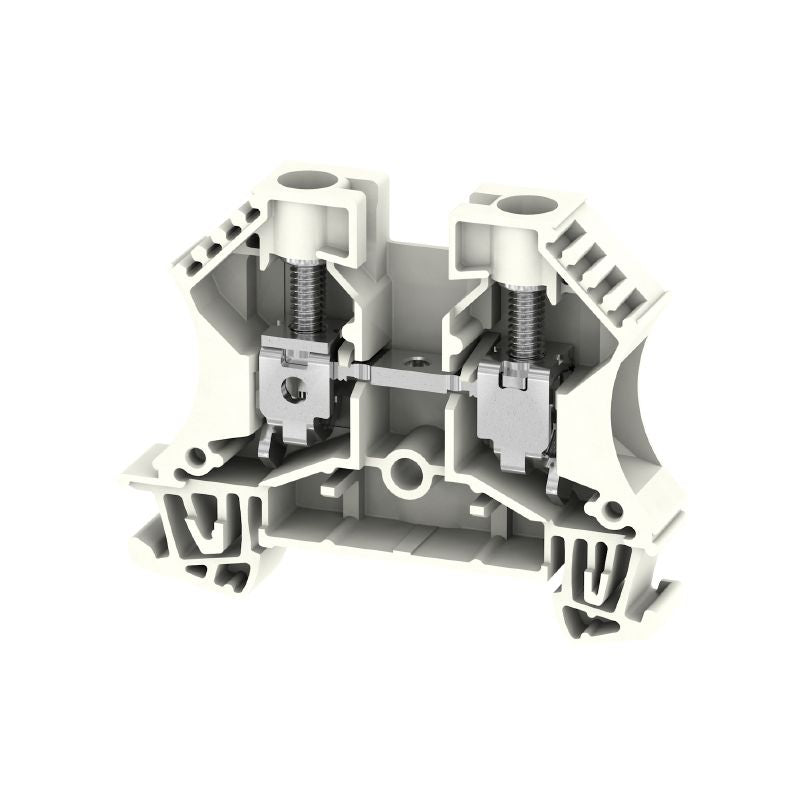

Introducing the WDU 10 WS feed-through terminal block, engineered for high operational efficiency This device features a robust screw connection and accommodates a wire cross-section of 10 mm² With a current rating of 57 A and a voltage capacity of up to 1000 V, it is adept for a broad range of applications, thanks to its dual connection points.

Features and Benefits:

    •Screw connection design for secure wiring.

    •Compact size with a white finish suitable for diverse installations.

    •Max voltage handling of 1000 V.

    •Current capacity of 57 A for handling substantial electrical loads.

    •Conforms to RoHS standards, ensuring environmental compliance.

Specifications:

 Depth 46.5 mm
 Height 60 mm
 Width 9.9 mm
 Net weight 15.734 g
 Storage temperature -25 °C...55 °C
 Ambient temperature -5 °C…40 °C
 Continuous operating temp., min. -60 °C
 Continuous operating temp., max. 130 °C
 Material Wemid
 UL 94 flammability rating V-0
 Max. voltage (ATEX) 690 V
 Current (ATEX) 57 A
 Wire cross section max. (ATEX) 10 mm²
 Mounting rail TS 35
 Number of connections 2
 Rated cross-section 10 mm²
 Rated voltage 1000 V
 Nominal current 57 A
 Volume resistance 0.56 mΩ
 Power loss 1.82 W
